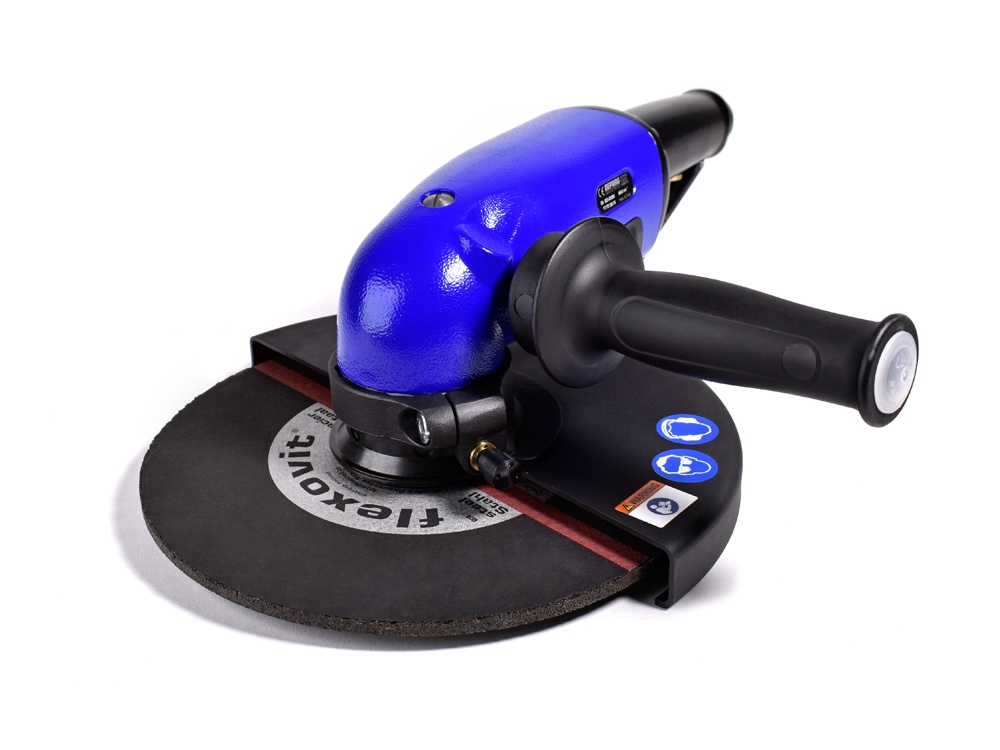

GA823-250BX

Our angle grinder with power 2,5 kW (5.51 hp) is designed for heavy duty, industrial applications and due to its robusticity it can be used 24/7.

The grinder is mainly used for treating metals, to level, to deburr or for fabricating cast-iron parts. The grinder offers a high power-to-weight ratio, which translates into maximum material removal with minimum effort. The grinder covers basically every application area.

Applications: Deburr welding seams (ship building), cut gate sections (cast-iron engine blocks), cut thick-walled profiles (steel construkction) etc.

Objednací číslo
6060971C
Max. power output 2500 W / 3.35 hp
Speed (no load) 6500 min-1
Weight 4,7 kg / 10.36 lbs
Drive vane motor
Assortment Standard assortment
Start safety lever
Design Basic Design
Rotation right
Air consumption (no load) 1,5 m3/min / 52.97 cfm
Air consumption (loaded) 2,9 m3/min / 102.40 cfm
Max. radial speed 80 m/s / 262.5 ft/s
I.D. of air inlet hose 16 mm / .63 in
I.D. of grinding wheel 22,23 mm / .87 in
O.D. of grinding wheel 230 mm / 9.06 in
Max. thickness of grinding wheel 10 mm / .39 in
Max. cutting depth 54 mm / 2.13 in
Air connection thread 1/2" female
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Allen key 5 mm 800448
Hose nozzle G1/2"/LW 16 6013767
O ring 18x2 mm 802517
Pin wrench 828832
Optional Accessories
Nozzle, G1/2"-15 mm 6079075
Plug 27SF AK21SXN 6072227
