GAT818-451BX

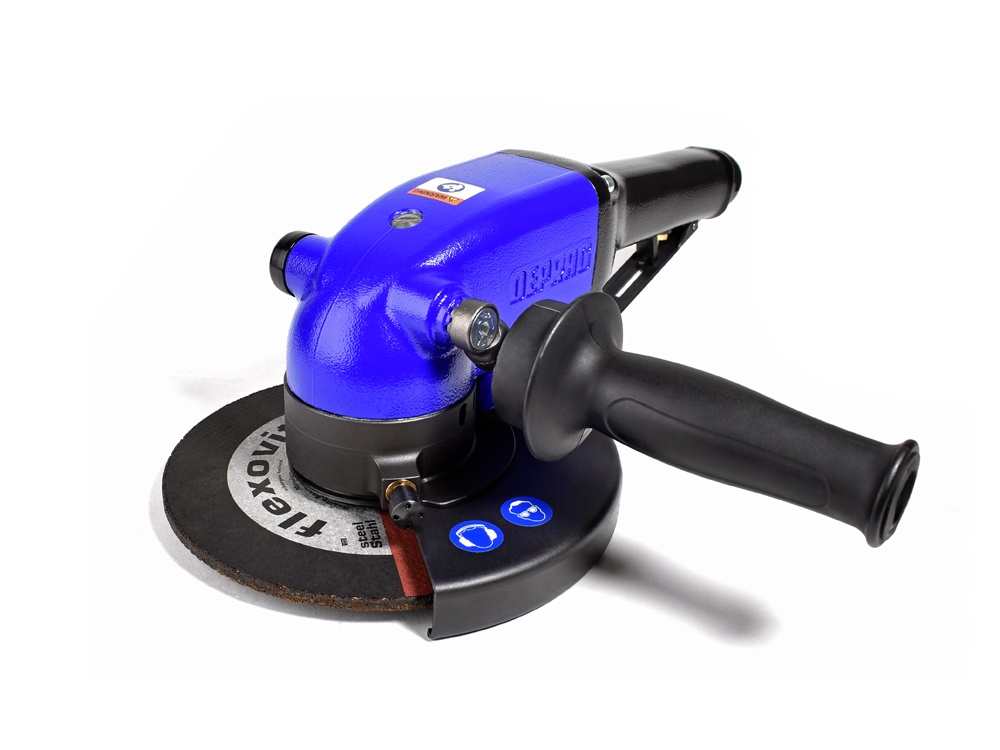

Air Turbine Grinder - DOUBLE THE POWER! HALF THE WEIGHT!

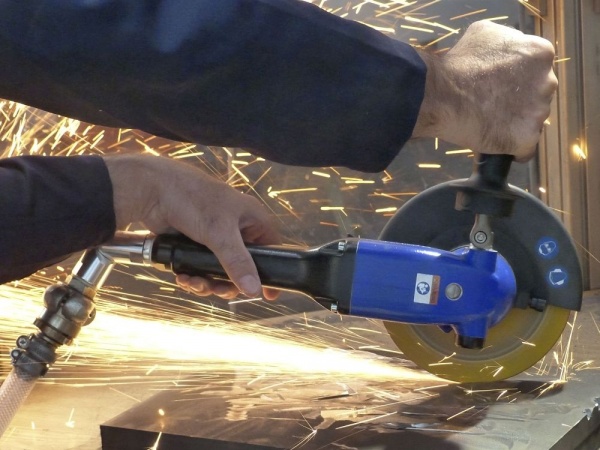

Our air angle grinder wit angle gear is designed for the scrubbing and leveling of cast-iron parts, steel parts, welding seams, non-ferrous metals of all types and rock, as well as for any other fabrication areas, such as the steel- and container construction, for machine building, in foundries and concrete  construction.

  • For grinding or when used with cut-off wheels of type 27, 41/42, for the best-possible grinding results even on hard-to-reach areas
  • Oilfree and maintenance-free operation, turbine motor does not require airline lubrication
  • Optimal power to weight ratio, low air consumption, high material removal
  • Perfect handling due to the vibration-dampening grip and the ergonomic form
  • High operating-safety
  • The integrated speed regulator holds the speed of the tool constant, even when tool is operated at full load.
Objednací číslo
418193F
Max. power output 4500 W / 6.03 hp
Speed (no load) 8500 min-1
Weight 4 kg / 8,80 lbs
Drive turbine drive
Assortment Standard assortment
Start safety lever
Design Basic Design
Rotation right
Air consumption (no load) 1,28 m3/min
Air consumption (loaded) 3,8 m3/min
Max. radial speed 80 m/s / 262.5 ft/s
I.D. of air inlet hose 19 mm / .75 in
I.D. of grinding wheel 22,23 mm / .87 in
O.D. of grinding wheel 180 mm / 7.09 in
Max. thickness of grinding wheel 10 mm / .39 in
Max. thickness of cutting-off wheel 3,2 mm / .13 in
Max. cutting depth 51,3 mm / 2.02 in
Air connection thread 1/2" female
Spindle thread -
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Pin wrench 828832
Optional Accessories

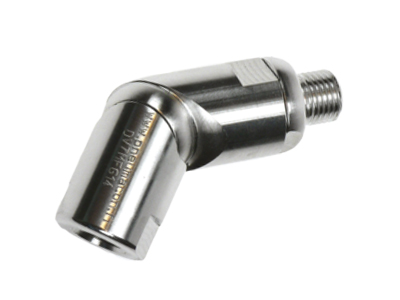

Nozzle, G1/2"-15 mm 6079075
Hose nozzle G1/2"/LW 16 6013767

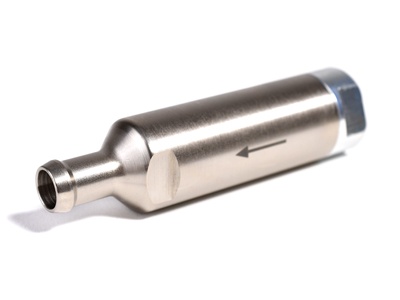

Filter - porosity of 20 μm 6021283A

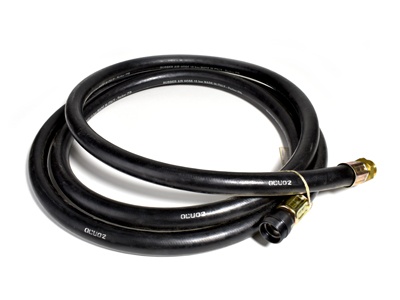

Hose set (4-meter hose, LW 19 mm, turnable) 418710A
Oil set for oil change in head 790083A

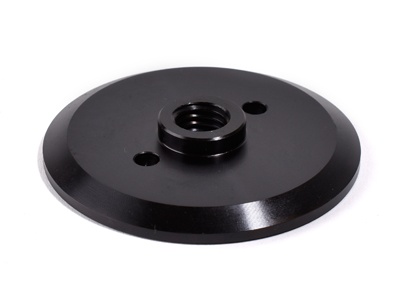

Clamp nut (for cutting-off wheel of type 41) 310184

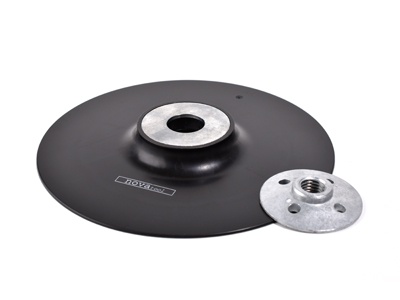

Rubber backing pad D180x22,2/M14 incl. nut 310324
Filter - porosity of 20 μm 6021283A
Nozzle, G1/2", turnable (around the axis) 6021377
