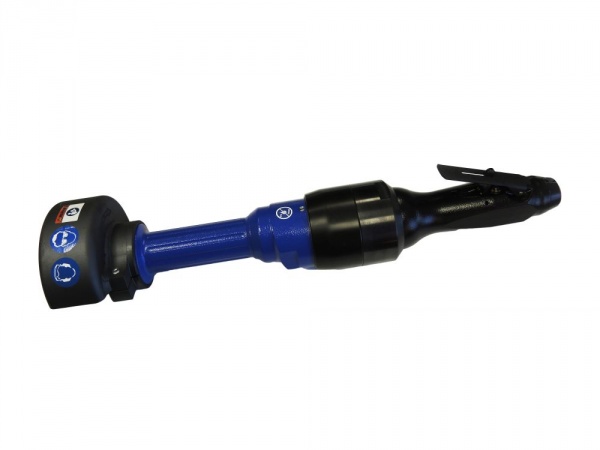

GST810-220BXO

Straight Grinder with Turbine Drive - Model No. GST 810-220BXO is designed to perform best on heavy duty, industrial applications – even when used in 24/7 operations.

For an oilfree operation, we recommend the use of our turbine grinders. The already excellent power-to-weight ratio of our vane-motors is surpassed by our turbine grinders. The operating speed of our grinders is adapted to assure the best-possible grinding result.

Applications:

  • machine building
  • foundries
  • grinding room
  • automotive industry
  • production of containers, railway carriages, construction etc.

Our air straight grinders are used with flat grinding disks, wherever heavy-duty fabrication is required on steel and castings or when deburring welding-, casting-, and ridge-seams. It has never been easier to perform smooth or coarse grinding of steel & cast iron (grey, formable etc.) in foundries, or when polishing welding seams or when fabricating casted parts.

Our straight grinders can also be used with steel brushes for the removal of rust or when descaling rolled steel and forgings.

Advantages:

  • High power output at a low weight, max. material removal, low air consumption
  • Oilfree and maintenance-free operation, turbine motor does not require airline lubrication
  • Efficiency, ergonomic – perfect handling due to the grip and ergonomic form, the handle allows a rotation of 90°, easy access to the screen
  • Turnable ring for air exhaust
  • Machine automatically shuts-off at overload
  • Integrated speed regulator
Objednací číslo
310109C
Max. power output 2200 W / 2.95 hp
Speed (no load) 14500 min-1
Weight 3 kg / 6,61 lbs
Drive turbine drive
Assortment Standard assortment
Start safety lever
Design For flat grinding discs, with safety flange
Rotation right
Air consumption (no load) 0,65 m3/min / 22.95 cfm
Air consumption (loaded) 2,1 m3/min / 74.15 cfm
Max. radial speed 80 m/s / 262.5 ft/s
I.D. of air inlet hose 13 mm / .51 in
I.D. of grinding wheel 20 mm / .79 in
O.D. of grinding wheel 100 mm / 4 in
Max. thickness of grinding wheel 20 mm / .79 in
Air connection thread 1/2" female
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Allen key 6 mm 800449
Pin wrench 805080
Optional Accessories
Grinding disc, Tyrolit, 1F80, 100x20x20 mm, A30S-BFX 80, steel 6078693
Grinding disc, Tyrolit, 1F80, 100x20x20 mm, 112A24Q4BF88 80, cast iron, formable 6078844
Grinding disc, Tyrolit, 1F80, 100x20x20 mm, 805A24Q4BF88 80, cast iron 6078845
Grinding disc, Tyrolit, 1F80, 100x25x20 mm, A30S-BFX 80, steel 6078846
Grinding disc,Tyrolit, 1F80, 100x25x20 mm, 112A24Q4BF88 80, cast iron, formable 6078847
Grinding disc, Tyrolit, 1F80, 100x25x20 mm, 805A24Q4BF88 80, cast iron 6078848
Grinding disc,Tyrolit, 1F80, 150x20x20 mm, A30S-BFX 80, steel 6078694
Grinding disc, Tyrolit, 1F80, 150x20x20 mm, 112A24Q4BF88 80, cast iron, formable 6078849
Grinding disc, Tyrolit, 1F80, 150x20x20 mm, 805A24Q4BF88 80, cast iron 6078850
Grinding disc, Tyrolit, 1F80, 150x25x20 mm, A30S-BFX 80, steel 6078851
Grinding disc,Tyrolit, 1F80, 150x25x20 mm, 112A24Q4BF88 80, cast iron, formable 6078852
Grinding disc, Tyrolit, 1F80, 150x25x20 mm, 805A24Q4BF88 80, cast iron 6078853
Swivel connector, G1/2"-12 mm, turnable 6078628
Hose set (LW 13 mm, 4-meter hose) 315130A
