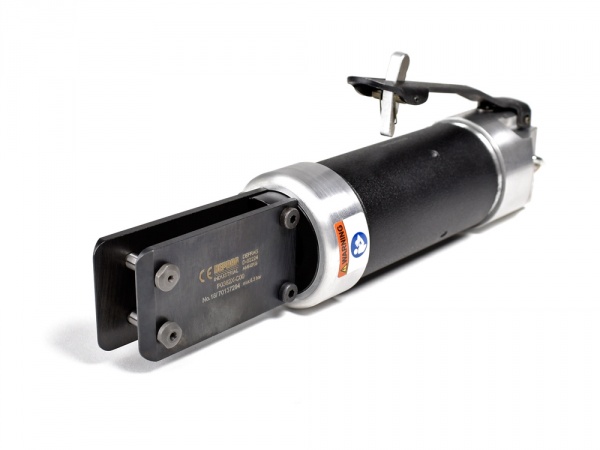

P0383X-C00

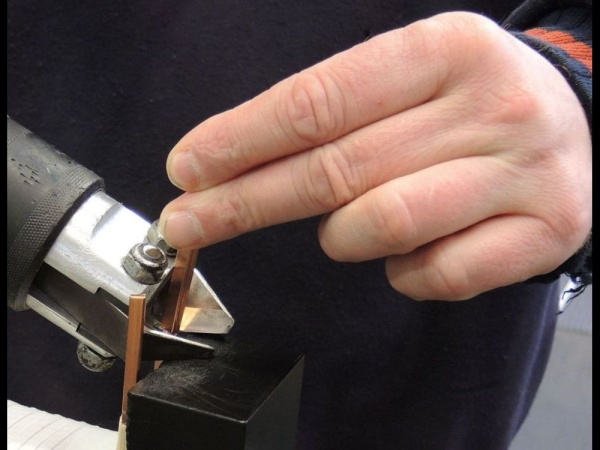

Our air pliers for cutting - with safety lever, for heavy-duty applications - for increased longevity, for the cutting of copper, aluminum, beryllium, silver, thermo/duroplast and steel. For the industrial use for example in series production, in the automotive industry, in machine building industry, in the appliance industry as well as in maintenance and assembly departments.
Your advantages: High cutting power, simple operation, highly durable
Our pliers is especially for the use in mass production, where a person can suffer sustained, long-lasting and monotonous stress in performing tasks such as assembling clips or cutting wires with manual tools. Such working conditions may result in RSI (repetitive strain injury). By replacing manual tools with our pneumatic plier the workers will be protected against negative effects of mass production workplace.
Our special pliers for cutting as well as for other operations (e.g. wire-end flattening; 90°angle forming or wire ends of electronic components).
Plier inserts for this cutting plier → Optional Accessories.| Cutting force | 3800 N |
|---|---|
| Weight (without plier insert) | 0,8 kg / 1.76 lbs |

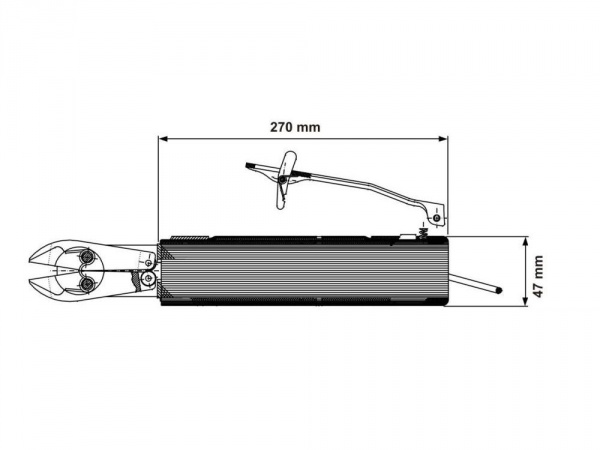

| Diameter | 47 mm / 1.85 in |
| Length (without plier insert) | 270 mm / 10.63 in |
| Assortment | Additional Assortment |
| Start | safety lever |
| Air consumption / Cutting | 0,74 l |
| I.D. of air inlet hose | 6 mm / .24 in |
| Pliers insert, mounted | no (plier insert I38…) |
| Air connection | thread 1/4" female |
| Operating pressure | 6,3 bar / 90 psi |
| Quick release coupling |
|
804250 |
|---|---|---|
| Nipple |
|
804270 |
| Handle |
|
6023574 |
|---|---|---|
| Pliers insert I38C00 (inserts opening 15 mm, cutting capacity Ø 12,5 mm) |
|
829830 |
| Pliers insert I38C00H2 (inserts opening 15 mm, cutting capacity Ø 12,5 mm) |
|
6950292 |
| Pliers insert I38C00HK2 (inserts opening 15 mm, cutting capacity Ø 12,5 mm) |
|
827204 |
| Pliers insert I38C25 (inserts opening 11,5 mm, cutting capacity Ø 9 mm) |
|
829829 |
| Pliers insert I38C25H2 (inserts opening 11,5 mm, cutting capacity Ø 9 mm) |
|
832172 |
| Pliers insert I38C25HK2 (inserts opening 11,5 mm, cutting capacity Ø 9 mm) |
|
827418 |
