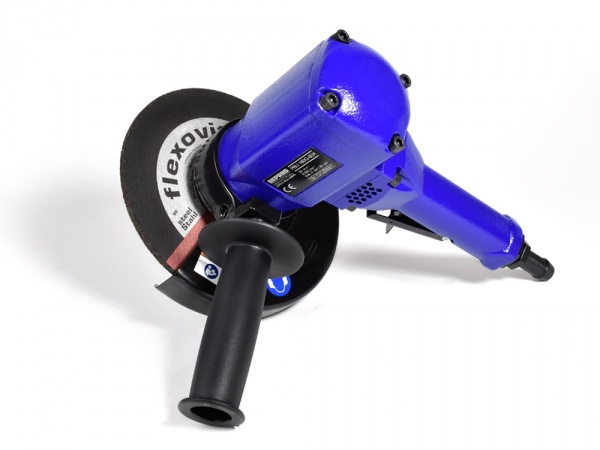

PBU180G-80X

Our air angle grinder with direct drive is designed for the scrubbing and leveling of cast-iron parts, steel parts, welding seams, non-ferrous metals of all types and rock, as well as for any other fabrication areas, such as the steel- and container construction, for machine building, in foundries and concrete construction.

  • For grinding wheels of type 27, ideal tool for grinding in areas not limited by space, the angle grinder Model PBU is equipped with direct drive resulting in lower maintenance requirements
  • Without an ABU (NO auto-balancing-unit)
  • Integrated speed regulator holds the speed of the tool constant, even when tool is operated at full load. Low air consumption.
Objednací číslo
830426A
Max. power output 1900 W / 2.55 hp
Speed (no load) 8500 min-1
Weight 4,05 kg / 8.93 lbs
Drive vane motor
Assortment Standard assortment
Start safety lever
Rotation right
Air consumption (no load) 0,7 m3/min / 24.72 cfm
Air consumption (loaded) 1,8 m3/min / 63.56 cfm
Max. radial speed 80 m/s / 262.5 ft/s
I.D. of air inlet hose 16 mm / .63 in
I.D. of grinding wheel 22,23 mm / .87 in
O.D. of grinding wheel 180 mm / 7.09 in
Max. thickness of grinding wheel 10 mm / .39 in
Air connection thread 1/2" female
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Pin wrench 828832
Allen key 4 mm 800447
Allen key 5 mm 800448
Allen key 6 mm 800449
Hose nozzle G1/2"/LW 16 6013767

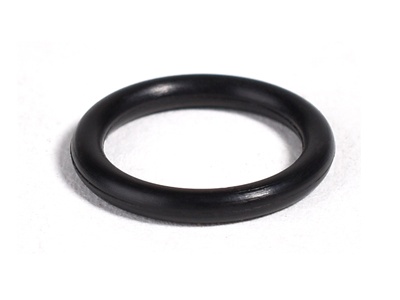

Ring 18x2 mm 830815
Optional Accessories
Swivel connector, G1/2"-12 mm, turnable 6078628
