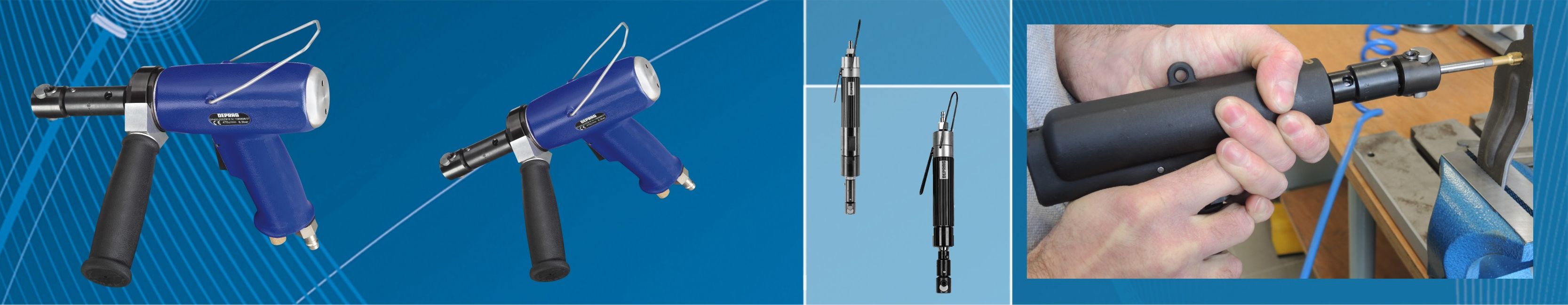

Air Tappers

Offers high-quality pneumatic tappers for the easy tapping of threads for both vertical and horizontal operations.



Product Calatogue



The Use of the DEPRAG INDUSTRIAL Tools:

Our pneumatic tappers are ideally suited for the tapping of threads, as well as the cleaning of threads in materials such as steel, aluminum and other alloys in automotive- and machine-building industries.

The tappers are equipped with a flexible chuck that perfectly guides the tap-insert and cuts a straight thread, even if the tapper is held at a slight angle.

Advantages:

  • Durability
  • Ease of Use
  • Reversibility
  • Suited for both horizontal and vertical applications
  • High power-to-weight ratio



query
from  150 W
to  700 W
from  300 min-1
to  650 min-1
from  0 kg
to  2 kg
1
  • Max. power output 150 W / .20 hp
  • Speed (no load) 620/660 (right/left) min-1
  • Weight 0,8 kg / 1.76 lbs
  • Drive vane motor
  • Max. power output 300 W / .40 hp
  • Speed (no load) 650/550 (right/left) min-1
  • Weight 1,5 kg / 3.31 lbs
  • Drive vane motor
  • Max. power output 400 W / .54 hp
  • Speed (no load) 300/250 (right/left) min-1
  • Weight 2,4 kg / 5.29 lbs
  • Drive vane motor
  • Max. power output 250 W / .34 hp
  • Speed (no load) 650/1120 (right/left) min-1
  • Weight 1,5 kg / 3.31 lbs
  • Drive vane motor
  • Max. power output 700 W / .94 hp
  • Speed (no load) 320/550 (right/left) min-1
  • Weight 2,9 kg / 6.39 lbs
  • Drive vane motor
