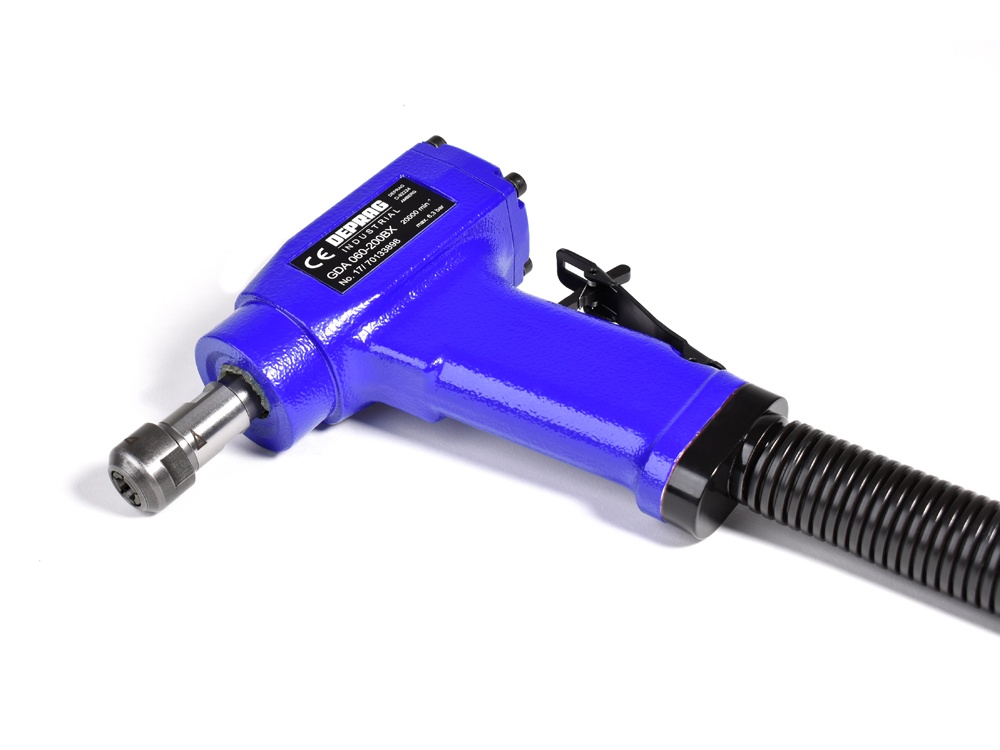

GDA060-200BX
Pneumatic angle grinder type GDA060-200 BX is designed for manual grinding of boring rod bits. To grind the sintered carbide of the rod bits, use the diamond spherical corpuscle of maximum outer diameter of 20 mm with clamping shank type a shank of diameter 8 mm.
The grinder is standard provided with air-cooling. It is possible to order the water-cooling set as special equipment. Water- and air-cooling help to improve the machine properly.
Objednací číslo
6060925A
| Max. power output | 600 W / .80 hp |
|---|---|
| Speed (no load) | 20000 min-1 |
| Weight | 1,35 kg / 2.98 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Design | Basic Design |
| Rotation | right |
| Air consumption (no load) | 0,9 m3/min / 31.80 cfm |
| I.D. of air inlet hose | 10 mm / .39 in |
| I.D. of water hose | 6 mm / .24 in |
| Weight (air connection) | 0,35 kg / .77 lbs |
| Weight - cooling water hose | 0,75 kg / 1.65 lbs |
| Max. Ø of diamond sharpening tool | 20 mm / .79 in |
| Air connection | Nipple |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Spanner 10 mm |
|
800402 |
|---|---|---|

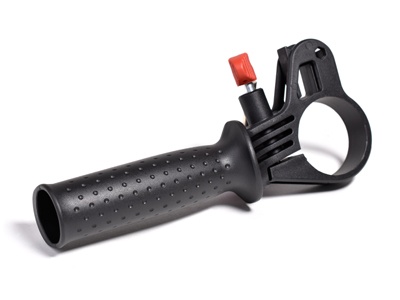

| Side handle |
|
6011153 |
| Allen key 4 mm |
|
800447 |
| Nipple Lw 10/D23/B |
|
6013802 |
Optional Accessories
| Collet ø 9 mm |
|
315089 |
|---|---|---|
| Collet ø 5/16'' |
|
315090 |

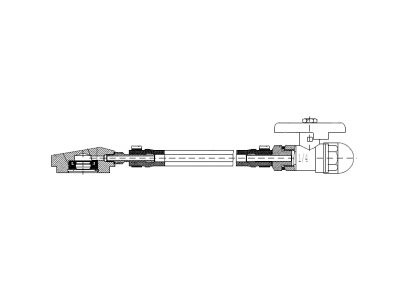

| Cooling water connection LW 6-1/4'' |
|
6017805 |
