NEW PRODUCT 2020: DGS - Robotic grinding head

GDS011-650BYE

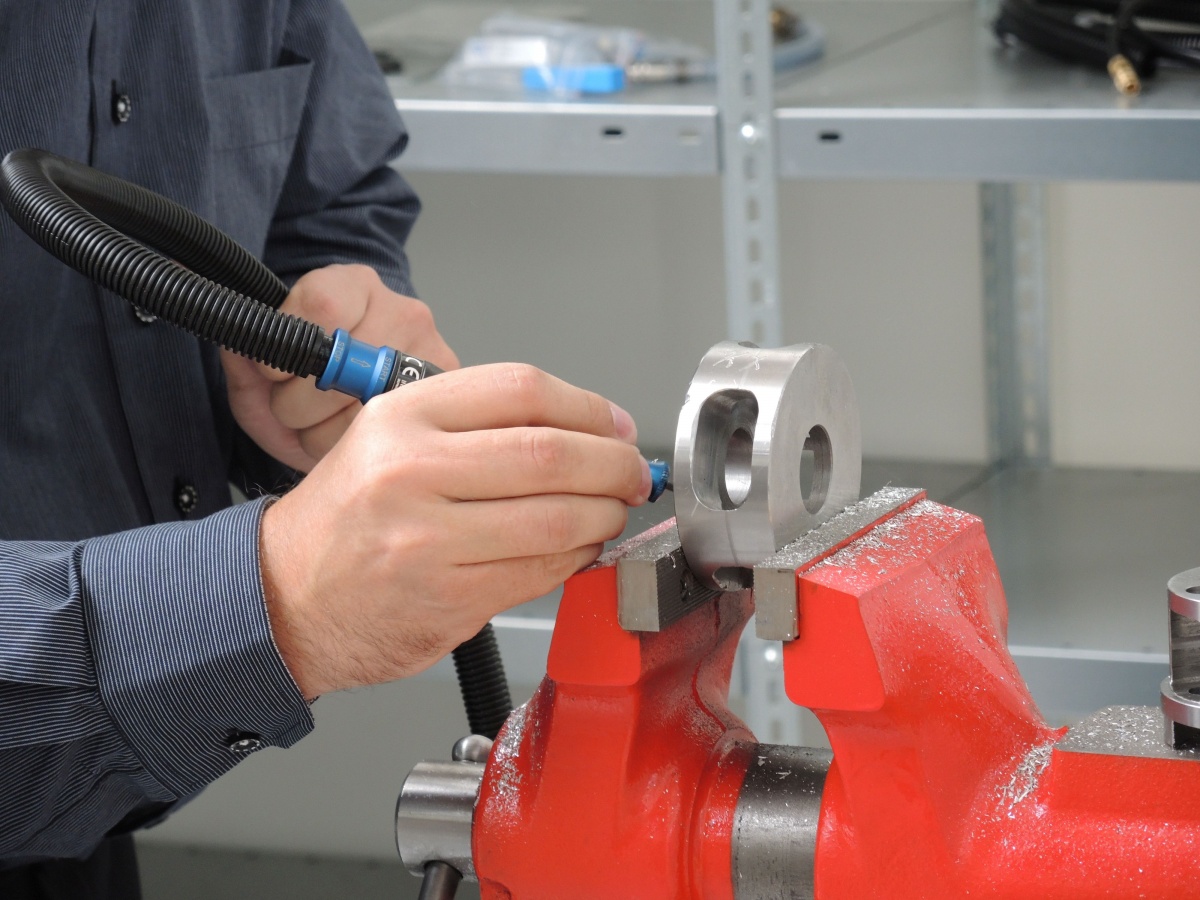

This Air Grinder is specially designed for grinding, milling and fabricating of casted parts. The tool is ideal for precision operations like grading and deburring of welding seams. It´s reduced size and low light weight, guarantees low vibration and makes every fabrication as convenient as possible.



Our small die-grinder is well suited for precision grinding using abrasive inserts, as well as  for the fabrication with carbide cutters in foundries. The grinder is not only well-suited for the use in the tool-, die-, and mold making industries, but due to the special features, it is also appropriate for other small industrial manufacturers.



Applications Air Grinder with Collet - Model GDS 011-650BYE:

  • Automotive Industry
  • Machine Building
  • Foundries
  • Easy access to hard-to-reach areas
  • Processing non-/metallic materials



Advantages:

  • Low weight
  • Ergonomic
  • Low vibration
  • Long lifespan
  • Higher power output, lower vibration compared to the Grinder – Model No. GDS 011-550BY
  • Low sound pressure level LpA according to DIN EN ISO 15744 – 73,8 dB(A) (measurement variation: 3 dB).
  • Low vibration according to ISO 28927-12 - <2,5 m/s2 (measurement variation: 0,74 m/s2, values according to EN 12096).

Objednací číslo
6061249A
Max. power output 110 W / .15 hp
Speed (no load) 65000 min-1
Weight 0,13 kg
Drive vane motor
Assortment Additional Assortment
Start slide valve start
Design Basic Design
Rotation right
Air consumption (no load) 0,15 m3/min / 5.30 cfm
Air consumption (loaded) 0,12 m3/min / 4.24 cfm
I.D. of air inlet hose 6 mm / .24 in
Weight (air connection) 0,13 kg / .29 lbs
Max. Ø of grinding tip 10 mm / .39 in
Max. Ø of grinding insert 3 mm / .12 in
Length of supply/exhaust hose 2/1 m / 6.6/3.3 ft
Collets - clamping range 3 [2; 3,25; 3/32''; 1/8''] mm
Air connection Nipple
Operating pressure 6,3 bar / 90 psi
Standard Equipment

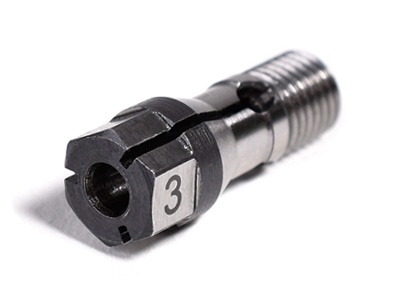

Collet ø 3 mm 314406

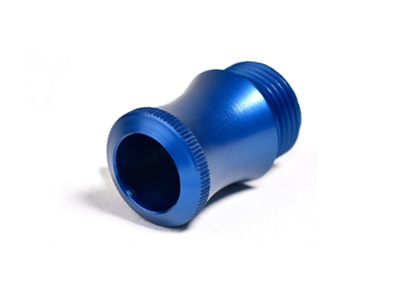

Nut 6022075

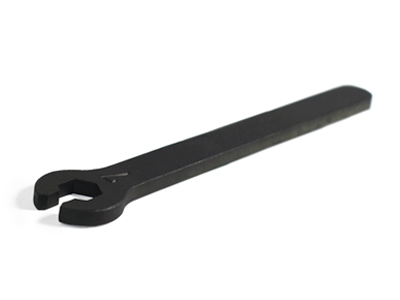

Wrench 7 mm 6015049
Spanner 8 mm 800399
Optional Accessories
Collet ø 2 mm 314693

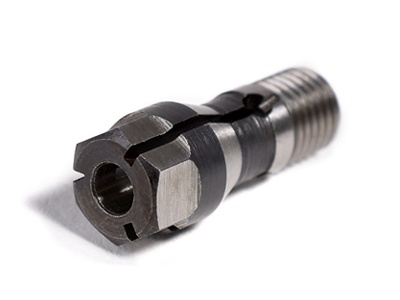

Collet ø 3,25 mm 314946

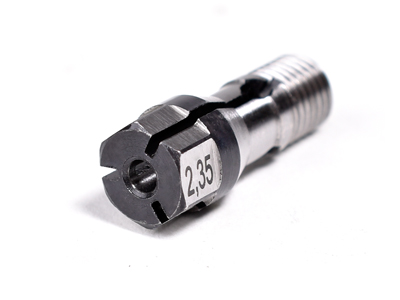

Collet ø 3/32'' 314694

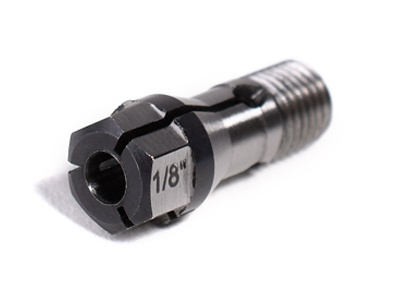

Collet ø 1/8'' 314407
