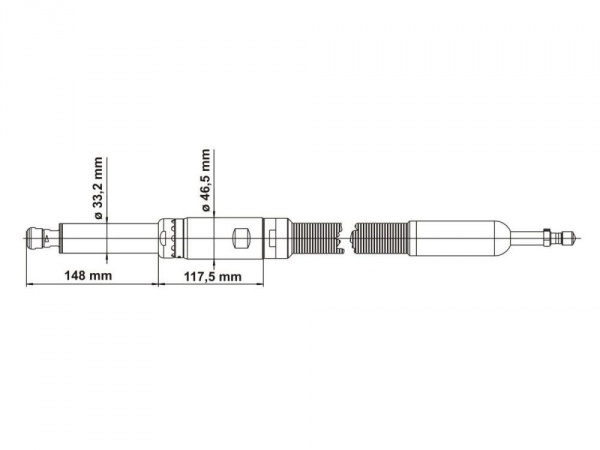

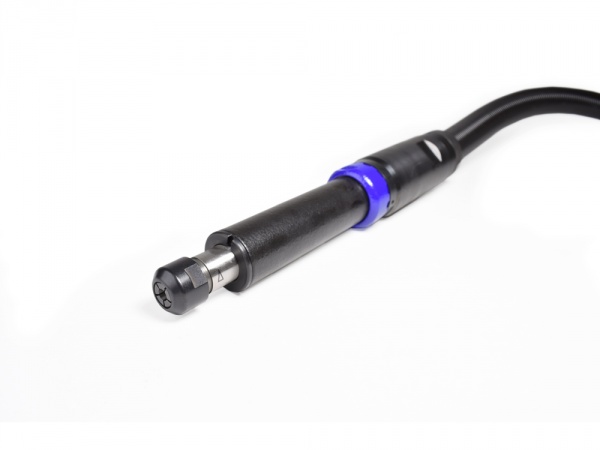

GDS070-190BSV

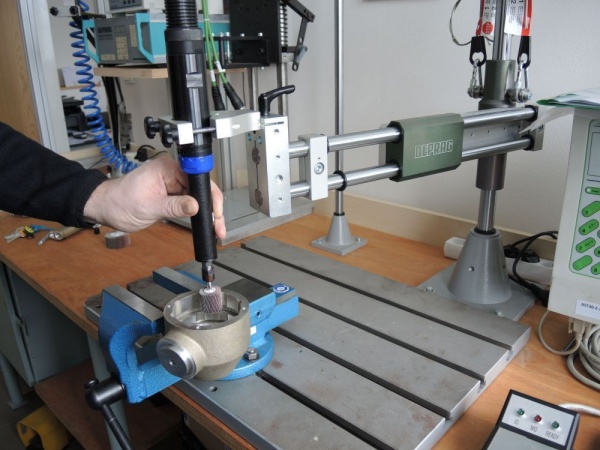

Our stationary grinder is well suited for the stationary grinding, the grinder originates from the handheld units of the series GDS 070.
This stationary air grinder is used with grinding tips, carbide cutters or flap disks. The robust steel housing assures a high repeatability and operating safety. Additionally, the grinding spindle incorporates a highly accurate collet (available for many different shaft-diameters) and those collets guarantee the extreme high run-out accuracy of this tool.
Application examples: Fabricating of plastics, fabricating of materials in foundries, tool- and die making, deburring, for example in the precision manufacturing, polishing of welding seems
Naturally, we can also offer customer-specific tool-solutions for applications that are not as common!
| Max. power output | 700 W / .94 hp |
|---|---|
| Speed (no load) | 19000 min-1 |
| Weight | 1,7 kg / 3.75 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | remote start |
| Design | Basic Design |
| Rotation | right |
| Air consumption (no load) | 0,4 m3/min / 14.12 cfm |
| Air consumption (loaded) | 0,9 m3/min / 31.78 cfm |
| I.D. of air inlet hose | 10 mm / .39 in |
| Max. Ø of grinding tip | 40 mm / 1.57 in |
| Max. Ø of grinding insert | 16 mm / .63 in |
| Max. Ø of flap wheel | 40 mm / 1.57 in |
| Length of supply/exhaust hose | 2/1 m / 6.6/3.3 ft |
| Collets - clamping range | 6 [3; 4; 5; 8; 9; 3/16'';1/4'', 5/16''] mm |
| Air connection | Nipple |
| Operating pressure | 6,3 bar / 90 psi |
| Collet ø 6 mm |
|
315018 |
|---|---|---|
| Spanner 17 mm |
|
800405 |
| Spanner 22 mm |
|
800416 |
| Nipple |
|
315071 |
| Foot pedal |
|
6080498 |
|---|---|---|

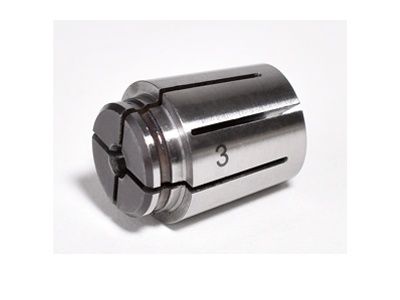

| Collet ø 3 mm |
|
6014317 |

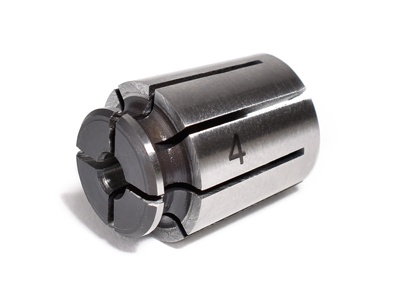

| Collet ø 4 mm |
|
6017743 |

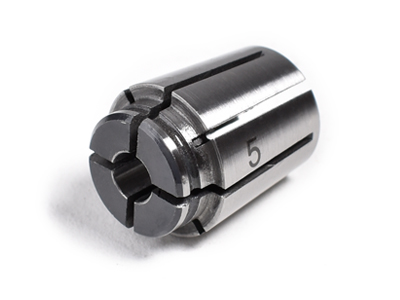

| Collet ø 5 mm |
|
6017744 |
| Collet ø 8 mm |
|
315073 |

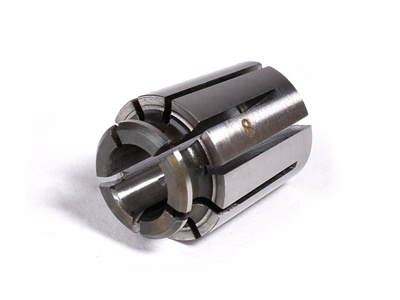

| Collet ø 8 mm (steinless) |
|
6014282 |
| Collet ø 9 mm |
|
315089 |
| Collet ø 1/4'' |
|
315074 |
| Collet ø 3/16'' |
|
315088 |
| Collet ø 5/16'' |
|
315090 |
