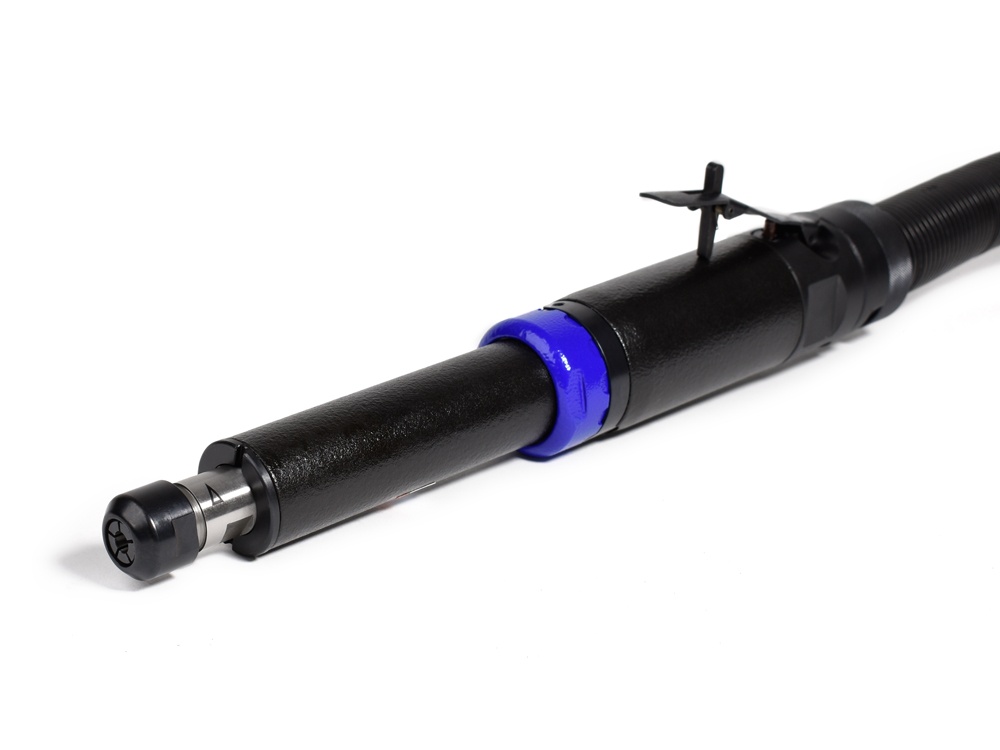

GDS070-230BXI

Our pneumatic grinder with collet fulfill all requirements for an optimum fabrication (for the grinding tips and for the milling with grinding inserts) - for all industrial areas - foundries, automotive industry etc.)

This grinder is equipped with a integrated speed regulator, that holds the speed of the tool constant, even when tool is operated at full load.

Cold-insolated housing.

Your advantages: For industrial applications, high power-output at a low weight, highly durable, efficient, ergonomic, simple operation.

Well balanced 6 mm collet (Standard Equipment)

Objednací číslo
6060566A
Max. power output 700 W / .94 hp
Speed (no load) 23000 min-1
Weight 1,7 kg / 3.75 lbs
Drive vane motor
Assortment Standard assortment
Start safety lever
Design Basic Design
Rotation right
Air consumption (no load) 0,51 m3/min / 18.0 cfm
Air consumption (loaded) 0,77 m3/min / 27.19 cfm
I.D. of air inlet hose 10 mm / .39 in
Weight (air connection) 0,4 kg / .88 lbs
Max. Ø of grinding tip 35 mm / 1.38 in
Max. Ø of grinding insert 16 mm / .63 in
Length of supply/exhaust hose 2/1 m / 6.6/3.3 ft
Collets - clamping range 6 [8; 9; 3/16''; 5/16''; 1/4''] mm
Air connection Nipple
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Collet ø 6 mm 315018
Spanner 17 mm 800405
Spanner 22 mm 800416
Nipple 315071
Optional Accessories
Collet ø 8 mm 315073
Collet ø 9 mm 315089
Collet ø 1/4'' 315074
Collet ø 3/16'' 315088
Collet ø 5/16'' 315090
