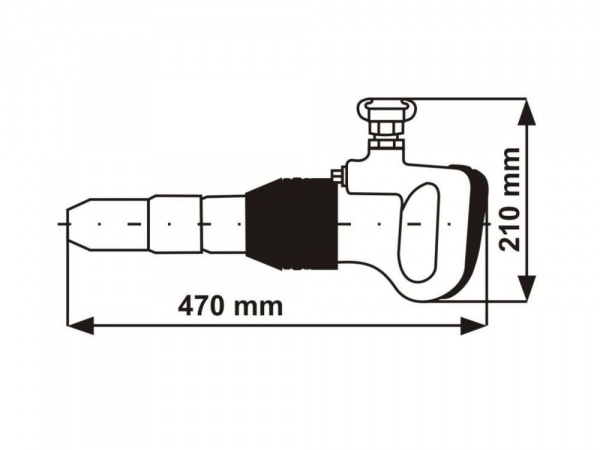

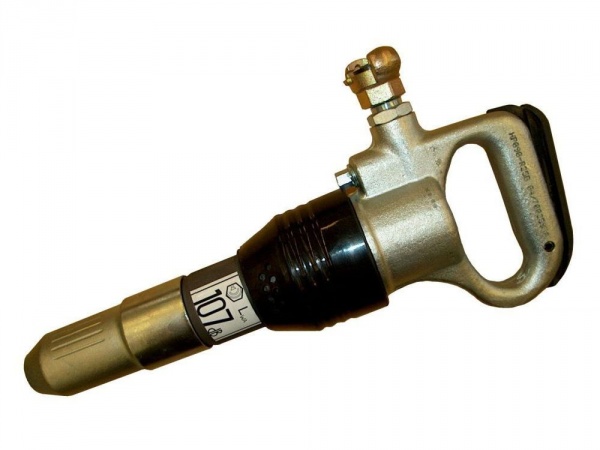

HP090-R25B
Our air pick hammer is used with drill-, or flat chisels to demolish stonework and concrete, for the use in road-construction and tunneling, as well as in mining.
Due to the weight of this hammer, it is possible to work in a vertical plane - in quarries and in the building industry. Your advantages: Highlys durable, simple operation, robust.
Objednací číslo
6060011A
| Weight | 9 kg / 19.84 lbs |
|---|---|
| Impact per minute | 1590 min-1 |
| Insertion tip | ø 25x75 mm |
| Air consumption (no load) | 0,9 m3/min / 31.80 cfm |
| Assortment | Additional Assortment |
| I.D. of air inlet hose | 16 mm / .63 in |
| Air connection | G 3/4'' male |
| Impact per minute - Hz | 27 Hz |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment

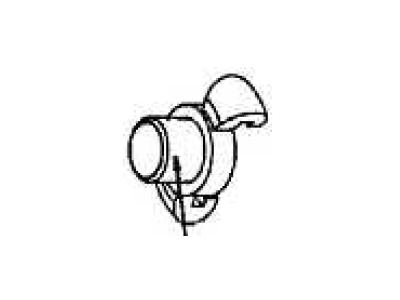

| Quick release coupling |
|
6072326 |
|---|
Optional Accessories

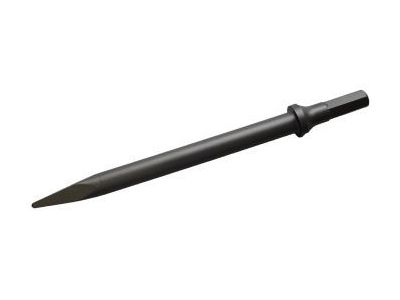

| Chisel pointed, R 25x75 mm, length 350 mm |
|
805435 |
|---|---|---|

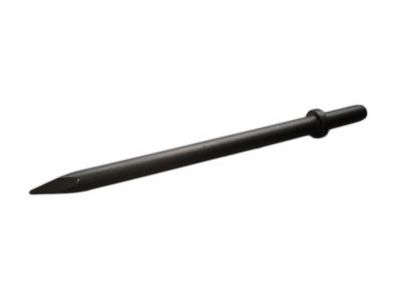

| Chisel pointed, R 25x75 mm, length 800 mm |
|
6074512 |

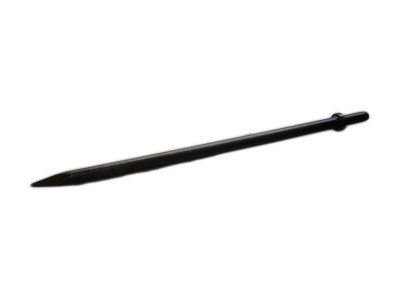

| Chisel pointed, R 25x75 mm, length 675 mm |
|
805437 |

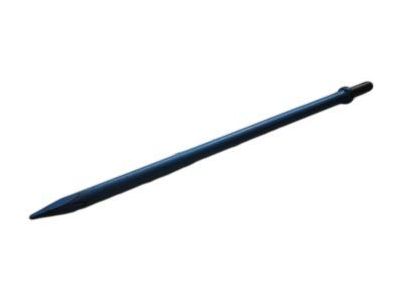

| Chisel pointed, R 25x75 mm, length 800 mm |
|
6074506 |

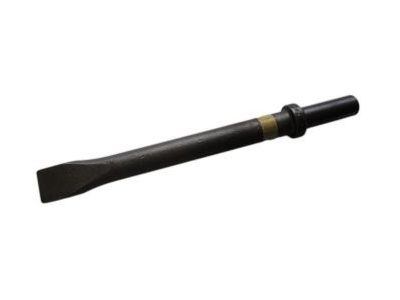

| Flat chisel, HR Ø 25x75 mm, length 350 mm, width 25 mm |
|
370195 |

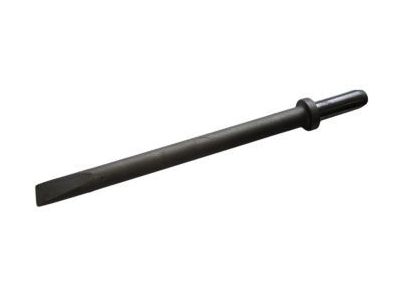

| Flat chisel, HR Ø 25x75 mm, length 450 mm, width 25 mm |
|
6074513 |

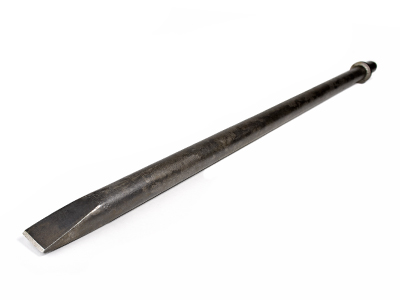

| Flat chisel, HR Ø 25x75 mm, length 675 mm, width 25 mm |
|
370197 |
