DA035-140SXC

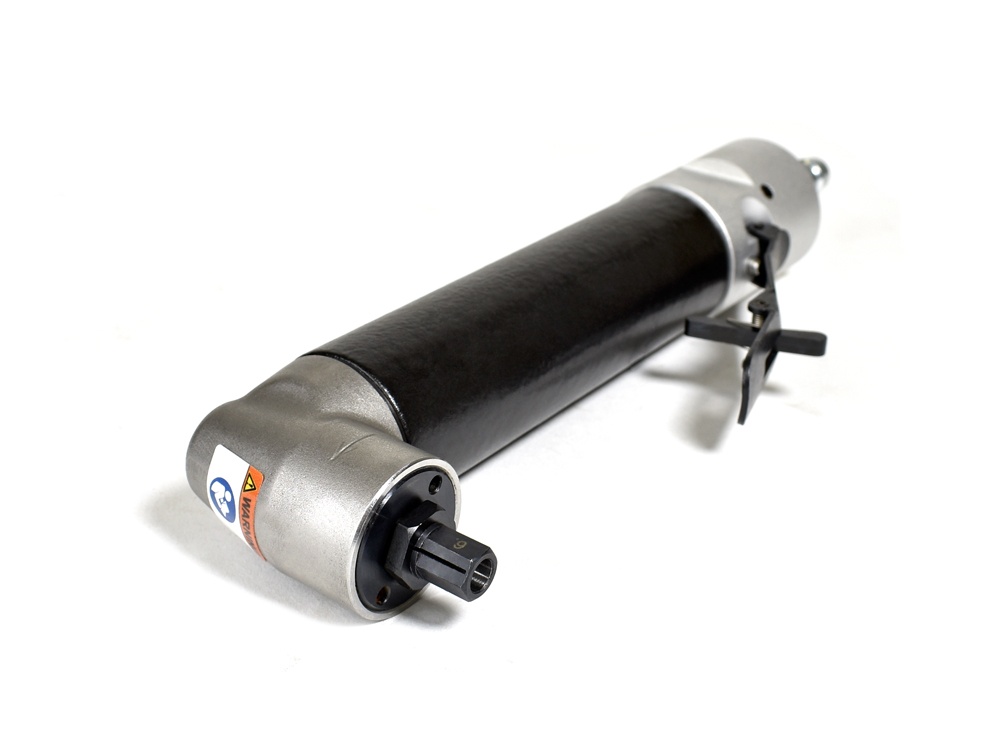

Our small angle drill (angle head 90°) is designed for the optimum drilling of different materials - for drilling into steel, aluminium etc. - for the construction in the ship building-, aviation and automotive industry, as well as the machine building industry.
With gearing to achieve the optimal operating speed and to achieve the best-possible drilling result.
Objednací číslo
3149191A
| Max. power output | 350 W / .47 hp |
|---|---|
| Speed (no load) | 14000 min-1 |
| Weight | 0,95 kg / 2.09 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Rotation | right |
| Air consumption (no load) | 0,47 m3/min / 16.60 cfm |
| I.D. of air inlet hose | 10 mm / .39 in |
| Collets - clamping range | 3-6 mm |
| Drilling into alu to | 6 mm / .24 in |
| Air connection | thread 1/4" male |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Collet ø 6 mm |
|
312688 |
|---|---|---|
| Quick release coupling |
|
804252 |
| Nipple |
|
323214 |
| Spanner 9 mm |
|
800401 |
| Spanner 14 mm |
|
800410 |
Optional Accessories
| Collet ø 3 mm |
|
312681 |
|---|---|---|
| Collet ø 4 mm |
|
312684 |
| Collet ø 5 mm |
|
312686 |
| Collet ø 6 mm |
|
312688 |
| Collet ø 3,175 mm |
|
312682 |
| Collet ø 6,35 mm |
|
312689 |
| Pressure hose (2m), exhaust hose (0,75 m) |
|
313179B |
