DP017-040ZB10

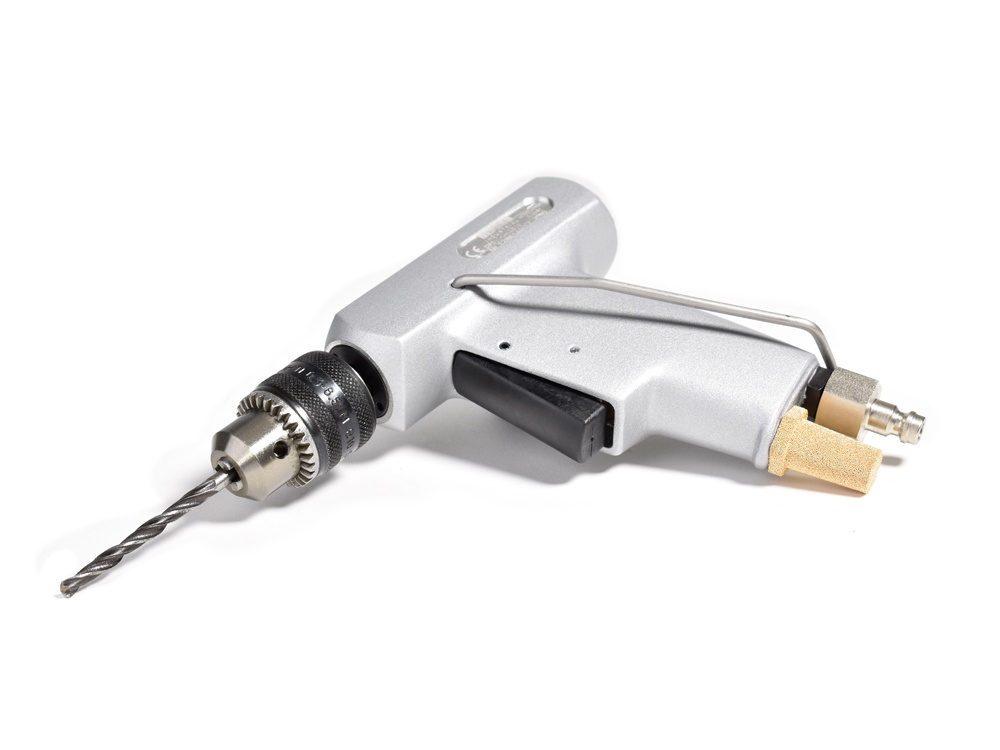

Our air drill for the manual drilling into metal, wood, plastics and other materials. This drill is used for the construction in the aviation- and automotive industry as well as the machine building industry. With pistolgrip design to absorb a higher torque. Without hoses.
Your advantages: For industrial applications, optimum power-to-weight ratio, ergonomic, simple operation
Objednací číslo
3020181A
| Max. power output | 170 W / .23 hp |
|---|---|
| Speed (no load) | 4000 min-1 |
| Weight | 0,6 kg / 1.32 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | trigger |
| Rotation | right |
| Air consumption (no load) | 0,35 m3/min / 12.36 cfm |
| Air consumption (loaded) | 0,35 m3/min / 12.36 cfm |
| I.D. of air inlet hose | 6 mm / .24 in |
| Chuck range | 0,5-6 mm |
| Taper DIN 238 | B10 |
| Drilling into steel to | 4 mm / .16 in |
| Drilling into alu to | 6 mm / .24 in |
| Air connection | thread 1/4" male |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Quick release coupling |
|
804250 |
|---|---|---|
| Nipple |
|
323213 |
| Drill chuck 0,5 - 6,5 mm/B10 |
|
804655 |
Optional Accessories
| Quick-change drill chuck (capacity 0-6,5 mm/B10) |
|
805986 |
|---|
