DP029-015ZPB12

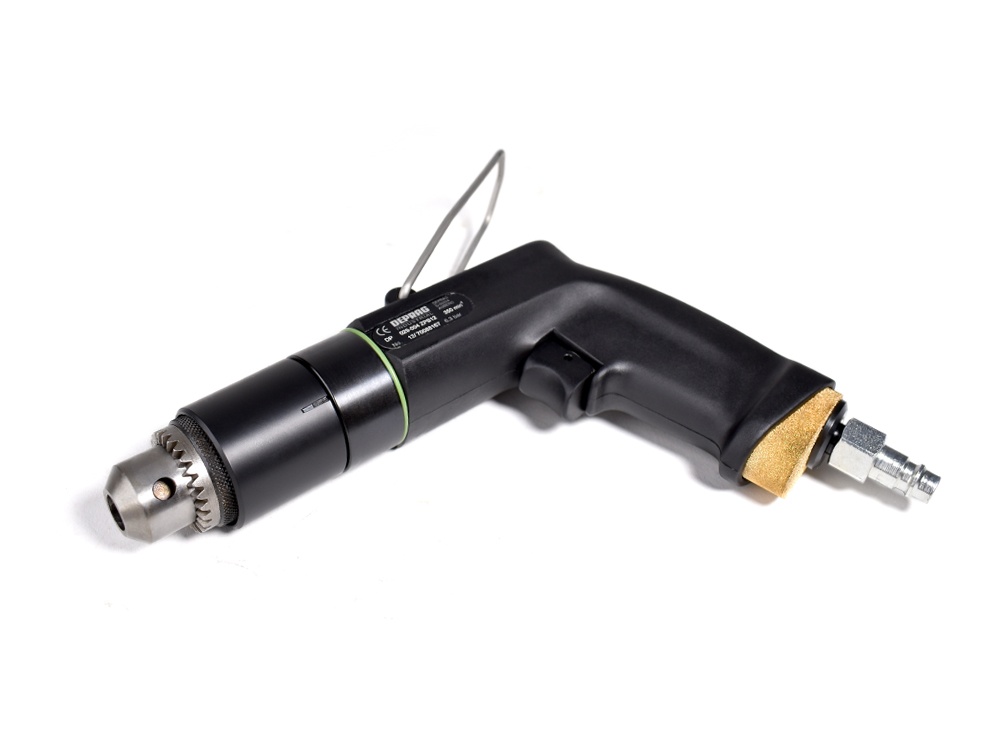

Our ergonomic drill for the manual drilling into metal, wood, plastics and other materials.  This drill is used for the construction in the aviation- and automotive industry as well as the machine building industry. With pistolgrip design to absorb a higher torque. Without hoses. Our drill is robust, durable, and offers long working lifetimes.

Your advantages: For industrial applications, optimum power-to-weight ratio, ergonomic, simple operation

Objednací číslo
3027101E
Max. power output 290 W / .39 hp
Speed (no load) 1500 min-1
Weight 1 kg / 2.20 lbs
Drive vane motor
Assortment Additional Assortment
Start trigger
Rotation right
Air consumption (no load) 0,35 m3/min / 12.36 cfm
Air consumption (loaded) 0,35 m3/min / 12.36 cfm
I.D. of air inlet hose 6 mm / .24 in
Chuck range 0,8-10 mm
Taper DIN 238 B12
Drilling into steel to 8 mm / .31 in
Drilling into alu to 10 mm / .39 in
Air connection thread 1/4" male
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Quick release coupling 804251
Nipple 323214
Drill chuck (capacity 0,8-10 mm/B12) 804650
Optional Accessories
Quick-change drill chuck (capacity 0-8 mm/B12) 805985
