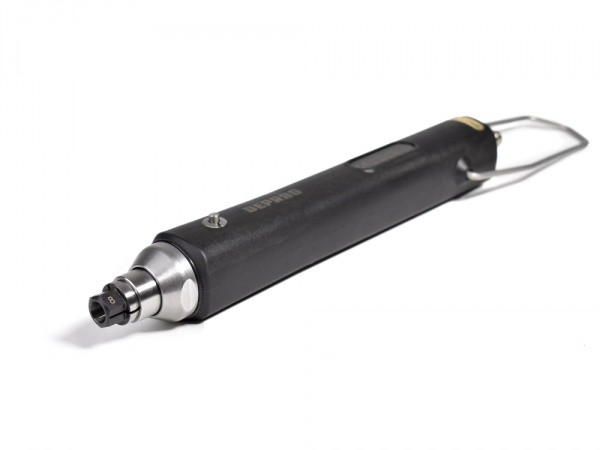

DS012-005PC

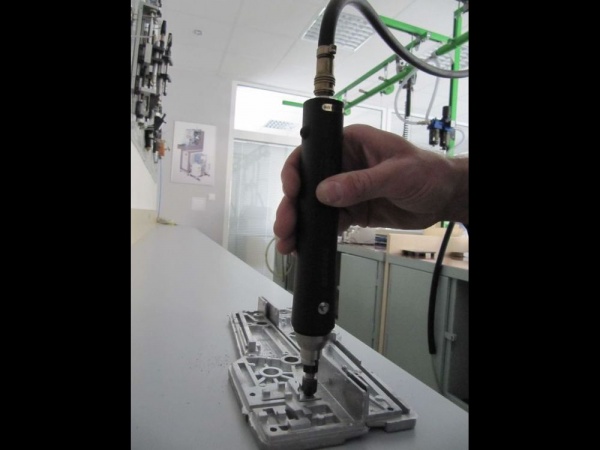

Drill with collet (deburrer) - for vertical applications - for the drilling of different materials in the aviation- and automotive industry as well as the machine building industry, push to start, collets with M12x1, clmaping diameter of 3 - 9,5 mm, deburring of holes up to 15 mm diameter, with commonly available burrs (90°). Spindle-lock for the simple locking and loosening of the drill bit. Rated torque 4,5 Nm. With gears for the best operating speed and superior drilling results.
Objednací číslo
300032A
| Max. power output | 120 W / .16 hp |
|---|---|
| Speed (no load) | 500 min-1 |
| Weight | 0,76 kg / 1.68 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | push to start |

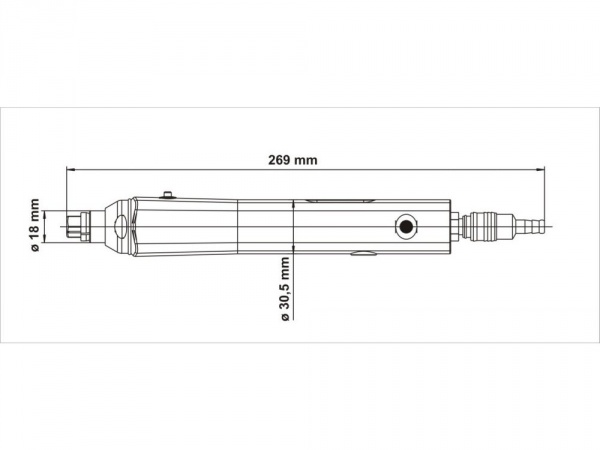

| Design | Inline design, with collet |
| Rotation | right |
| Speed (loaded) | 250 min-1 |
| Air consumption (loaded) | 0,3 m3/min / 10.59 cfm |
| I.D. of air inlet hose | 6 mm / .24 in |
| Collets - clamping range | 8 [3; 3,175; 3,3; 4; 5; 6; 6,35; 7; 9; 9,5] mm |
| Max. Ø of deburring | 15 mm / .59 in |
| Air connection | thread 1/8" female |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment

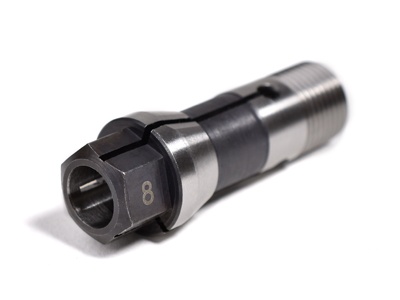

| Collet ø 8 mm |
|
312696 |
|---|---|---|

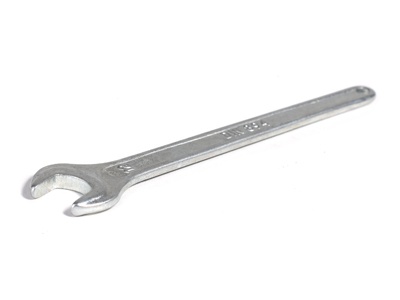

| Spanner 12 mm |
|
800403 |

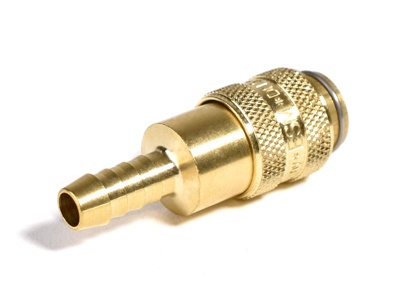

| Quick release coupling |
|
804250 |

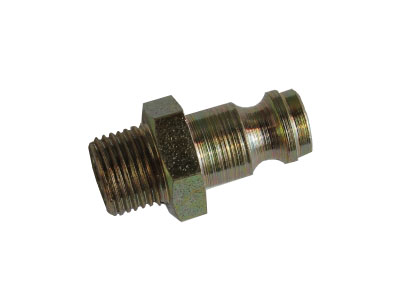

| Nipple |
|
804273 |
Optional Accessories

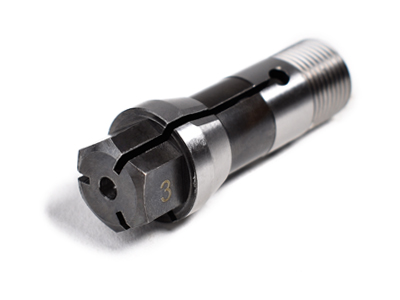

| Collet ø 3 mm |
|
312690 |
|---|---|---|

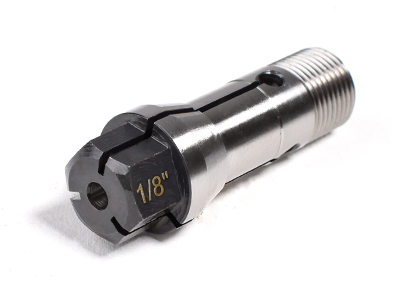

| Collet ø 3,175 mm |
|
312691 |
| Collet ø 3,3 mm |
|
314499 |

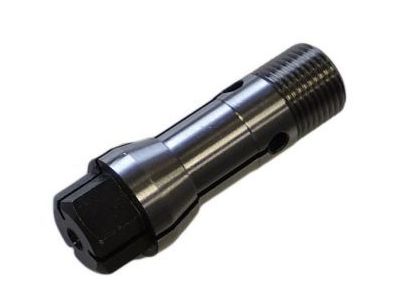

| Collet ø 4 mm |
|
312692 |

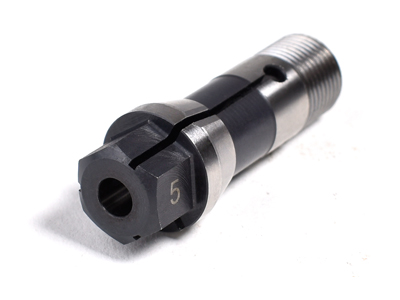

| Collet ø 5 mm |
|
312693 |

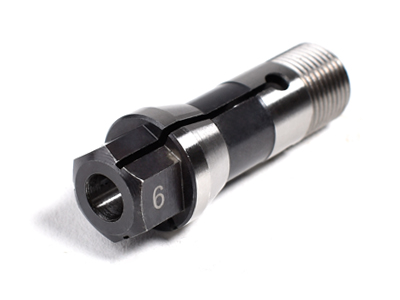

| Collet ø 6 mm |
|
312694 |
| Collet ø 6,35 mm |
|
312695 |
| Collet ø 7 mm |
|
312739 |
| Collet ø 9 mm |
|
313137 |

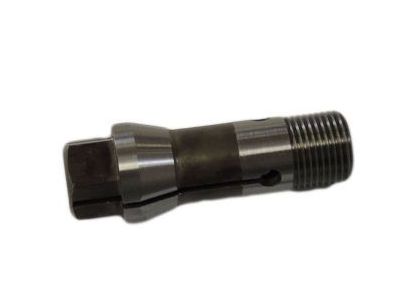

| Collet ø 9,5 mm |
|
313349 |

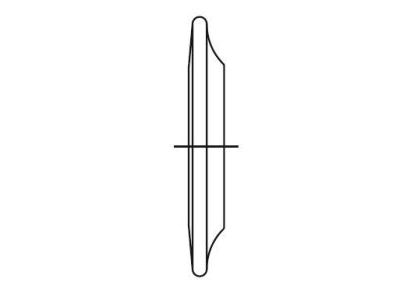

| Ring |
|
389775C |
| Handle |
|
328536L |

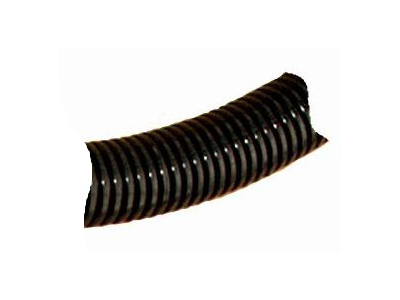

| Exhaust hose |
|
389653A |
