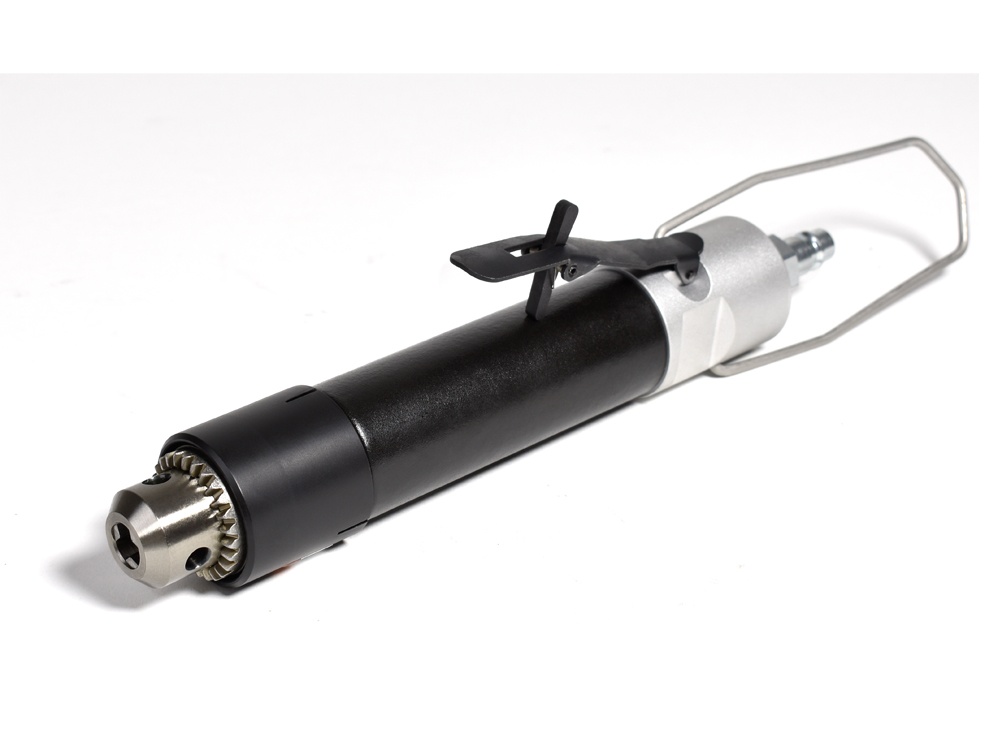

DS029-170SXPB10
Our midget drill with drill chuck primarily for vertical applications in the aviation- and automotive industry as wel as the machine building industry
With gearing to achieve the optimal operating speed and to achieve the best-possible drilling result. Tapered chuck DIN 238 - B10.
Objednací číslo
3922131C
| Max. power output | 290 W / .39 hp |
|---|---|
| Speed (no load) | 17000 min-1 |
| Weight | 0,89 kg / 1.96 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Rotation | right |
| Air consumption (no load) | 0,35 m3/min / 12.36 cfm |
| I.D. of air inlet hose | 6 mm / .24 in |
| Chuck range | 0,5-6,5 mm |
| Taper DIN 238 | B10 |
| Drilling into alu to | 6 mm / .24 in |
| Air connection | thread 1/4" male |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Quick release coupling |
|
804251 |
|---|---|---|
| Nipple |
|
323214 |
| Drill chuck 0,5 - 6,5 mm/B10 |
|
804655 |

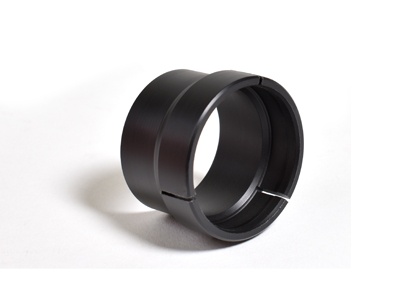

| Chuck cover |
|
302686 |
