DS070-003BXRB16

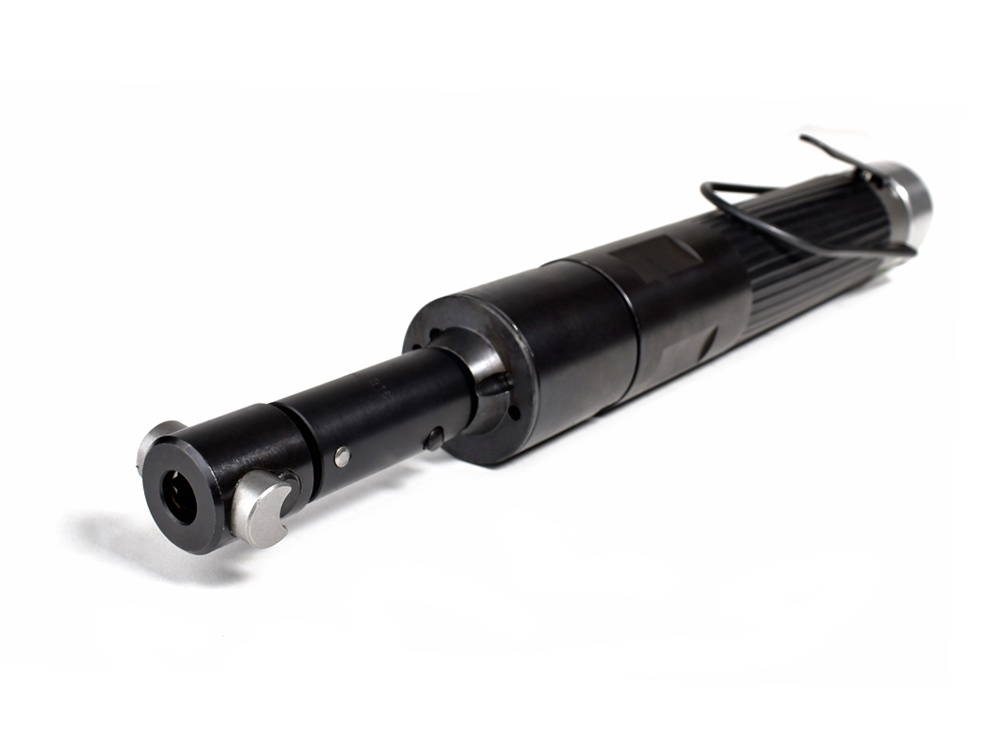

Tapper - straight - for the tapping of threads, as well as the cleaning of threads in material such as steel, aluminium and other alloys for applications in the automotive- and machine building industries.
The tapper is equipped with a flexible chuck that perfectly guides the tap-insert and cuts a straight thread, even if the tapper is held at a slight angle.
Objednací číslo
3028501B
| Max. power output | 700 W / .94 hp |
|---|---|
| Speed (no load) | 320/550 (right/left) min-1 |
| Weight | 2,9 kg / 6.39 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Design | Inline design |
| Rotation | right/left |
| Air consumption (no load) | 0,9 m3/min / 31.80 cfm |
| I.D. of air inlet hose | 10 mm / .39 in |
| Tapping into steel to | M14 mm |
| Tapping into alu to | M16 mm |
| Pendelfutter capacity | 3-9 mm |
| Taper DIN 238 capacity | B16 mm |
| Air connection | thread 3/8" male |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Quick release coupling |
|
804252 |
|---|---|---|
| Nipple |
|
804262 |

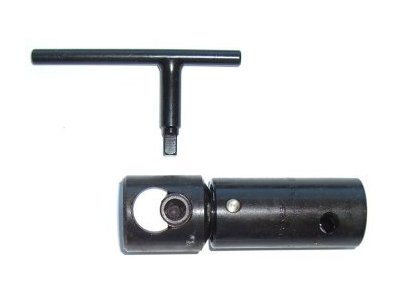

| Drill chuck - swinging |
|
805092A |
Optional Accessories

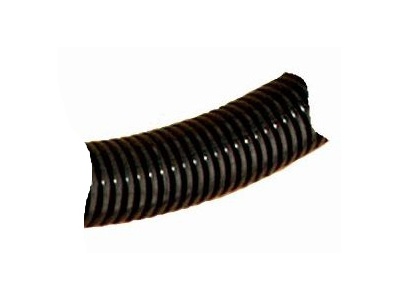

| Pressure hose (2m), exhaust hose (0,75 m) |
|
314545A |
|---|---|---|
| Drill chuck 1,5-13 P13xB16 |
|
804652 |

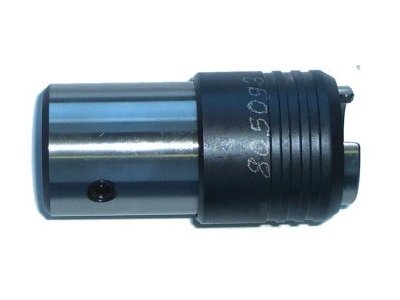

| Quick-change bushing |
|
805093 |

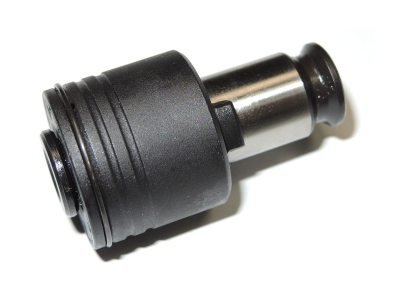

| Quick-change insert (fro blind thread) with safety clutch for taps with a shaft-dimension of ø6 mm x 4,9 mm (M8) |
|
805156 |
| Quick-change insert (fro blind thread) with safety clutch for taps with a shaft-dimension of ø7 mm x 5,5 mm (M10) |
|
805157 |

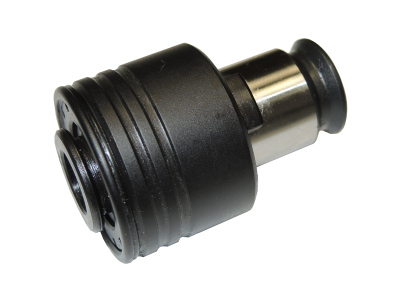

| Quick-change insert (fro blind thread) with safety clutch for taps with a shaft-dimension of ø9 mm x 7 mm (M12) |
|
805158 |

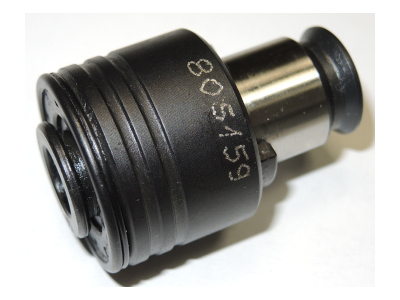

| Quick-change insert (fro blind thread) with safety clutch for taps with a shaft-dimension of ø11 mm x 9 mm (M14) |
|
805159 |
