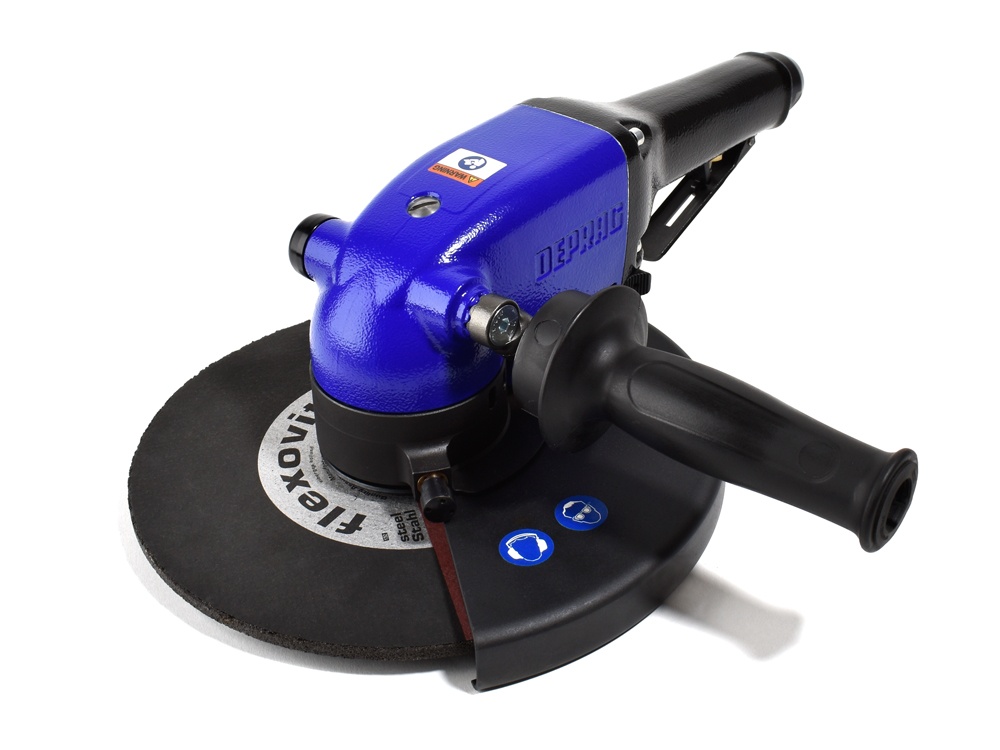

GAT823-451BX

Air Turbine Grinder - DOUBLE THE POWER! HALF THE WEIGHT!

Our air angle grinder wit angle gear is designed for the scrubbing and leveling of cast-iron parts, steel parts, welding seams, non-ferrous metals of all types and rock, as well as for any other fabrication areas, such as the steel- and container construction, for machine building, in foundries and concrete construction.

For grinding or when used with cut-off wheels of type 27, 41/42, for the best-possible grinding results even on hard-to-reach areas
Oilfree and maintenance-free operation, turbine motor does not require airline lubrication
Optimal power to weight ratio, low air consumption, high material removal
Perfect handling due to the vibration-dampening grip and the ergonomic form
High operating-safety
The integrated speed regulator holds the speed of the tool constant, even when tool is operated at full load.

Noise Level / Vibration

PDF Product Catalog

Objednací číslo

418193G

Max. power output	4500 W / 6.03 hp
Speed (no load)	6400 min^-1
Weight	4,2 kg
Drive	turbine drive
Assortment	Standard assortment
Start	safety lever
Design	Basic Design
Rotation	right
Air consumption (no load)	1,28 m³/min
Air consumption (loaded)	3,8 m³/min
Max. radial speed	80 m/s / 262.5 ft/s
I.D. of air inlet hose	19 mm / .75 in
I.D. of grinding wheel	22,23 mm / .87 in
O.D. of grinding wheel	230 mm / 9.06 in
Max. thickness of grinding wheel	8 mm / .31 in
Max. thickness of cutting-off wheel	3,2 mm / .13 in
Max. cutting depth	76,3 mm / 3.00 in
Air connection	thread 1/2" female
Spindle thread	M14
Operating pressure	6,3 bar / 90 psi

Compare

Standard Equipment

Pin wrench		828832

Optional Accessories

Nozzle, G1/2"-15 mm		6079075
Hose nozzle G1/2"/LW 16		6013767
Filter - porosity of 20 μm		6021283A
Hose set (4-meter hose, LW 19 mm, turnable)		418710A

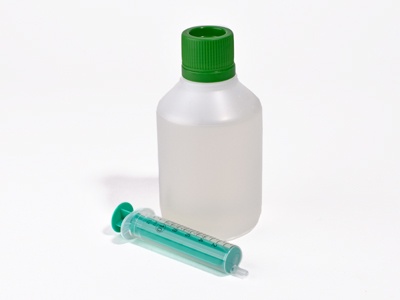

Oil set for oil change in head, oil 250 ml		790083A
Nozzle, G1/2", turnable (around the axis)		6021377
Clamp nut (for cutting-off wheel of type 41)		310184
Rubber backing pad D180x22,2/M14 incl. nut		310324
