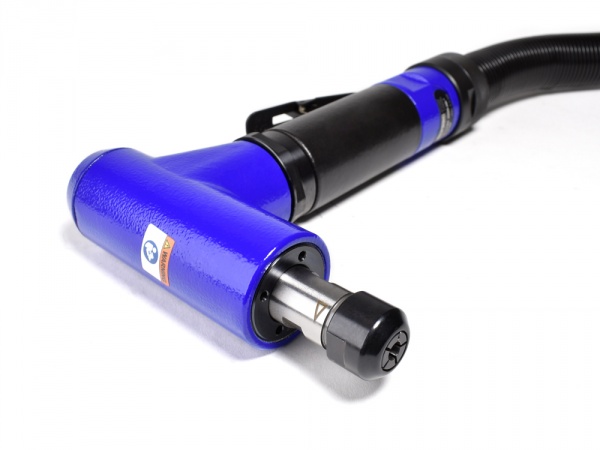

GDA070-153BX

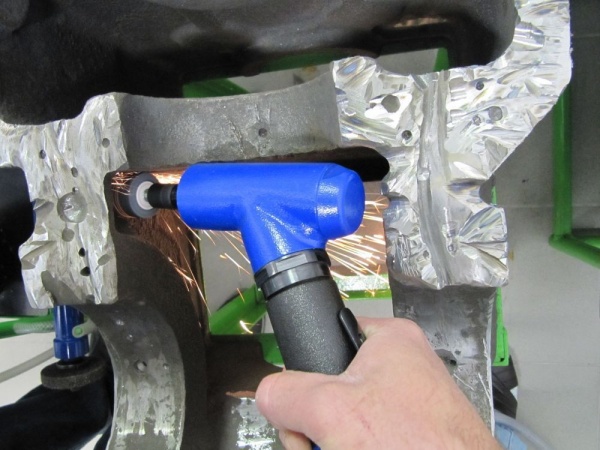

Optimum fabrication results in all industrial areas. Ideal because of the angle-head, this tool accesses hard-to-reach areas, such as when processing molds and for the cutting of castings or fixtures. This tool is suitable for the fabricating of both metals and plastics. Our grinders are equipped with a speed-regulator, that holds the speed of the tool constant, even when tools is operated at full load.
Well balanced 6 mm collet (Standard Equipment).
Objednací číslo
830497A
| Max. power output | 700 W / .94 hp |
|---|---|
| Speed (no load) | 15300 min-1 |
| Weight | 1 kg / 2.20 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Design | Basic Design |
| Rotation | right |
| Air consumption (no load) | 0,4 m3/min / 14.12 cfm |
| I.D. of air inlet hose | 10 mm / .39 in |
| Weight (air connection) | 0,4 kg / .88 lbs |
| Max. Ø of grinding tip | 50 mm / 1.97 in |
| Max. Ø of grinding insert | 16 mm / .63 in |
| Length of supply/exhaust hose | 2/1 m / 6.6/3.3 ft |
| Collets - clamping range | 6 [8; 9; 3/16''; 5/16''; 1/4''] mm |
| Air connection | Nipple |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Collet ø 6 mm |
|
315018 |
|---|---|---|
| Spanner 14 mm |
|
800410 |
| Spanner 17 mm |
|
800405 |
| Nipple |
|
315071 |
Optional Accessories
| Collet ø 8 mm |
|
315073 |
|---|---|---|
| Collet ø 9 mm |
|
315089 |
| Collet ø 1/4'' |
|
315074 |
| Collet ø 3/16'' |
|
315088 |
| Collet ø 5/16'' |
|
315090 |
