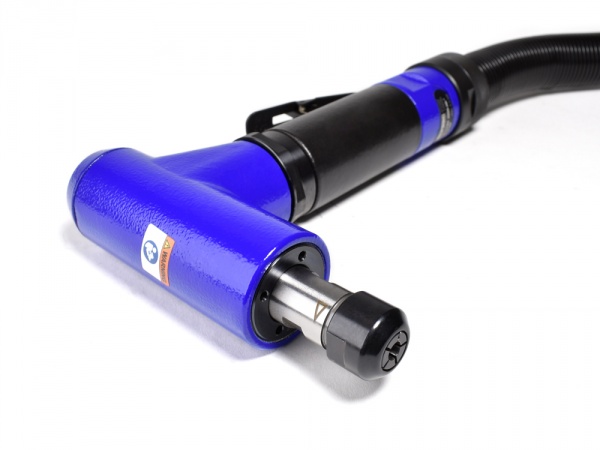

GDA070-230BX

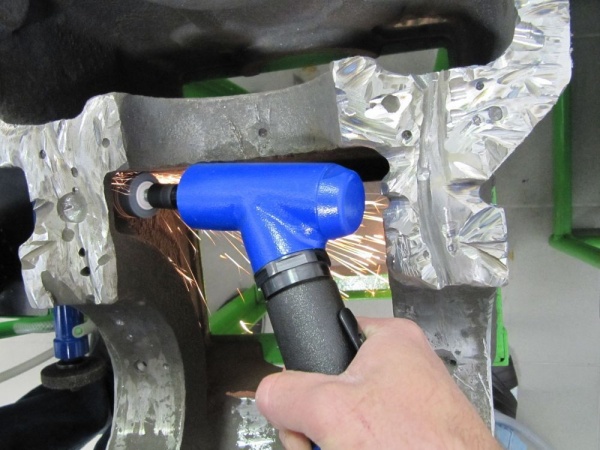

Optimum fabrication results in all industrial areas. Ideal because of the angle-head, this tool accesses hard-to-reach areas, such as when processing molds and for the cutting of castings or fixtures. This tool is suitable for the fabricating of both metals and plastics. Our grinders are equipped with a speed-regulator, that holds the speed of the tool constant, even when tools is operated at full load.

Well balanced 6 mm collet (Standard Equipment).

Objednací číslo
830497E
Max. power output 700 W / .94 hp
Speed (no load) 23000 min-1
Weight 1 kg / 2.20 lbs
Drive vane motor
Assortment Additional Assortment
Start safety lever
Design Basic Design
Rotation right
Air consumption (no load) 0,5 m3/min / 17.66 cfm
I.D. of air inlet hose 10 mm / .39 in
Weight (air connection) 0,4 kg / .88 lbs
Max. Ø of grinding tip 40 mm / 1.57 in
Max. Ø of grinding insert 16 mm / .63 in
Length of supply/exhaust hose 2/1 m / 6.6/3.3 ft
Collets - clamping range 6 [8; 9; 3/16''; 5/16''; 1/4''] mm
Air connection Nipple
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Collet ø 6 mm 315018
Spanner 14 mm 800410
Spanner 17 mm 800405
Nipple 315071
Optional Accessories
Collet ø 8 mm 315073
Collet ø 9 mm 315089
Collet ø 1/4'' 315074
Collet ø 3/16'' 315088
Collet ø 5/16'' 315090
