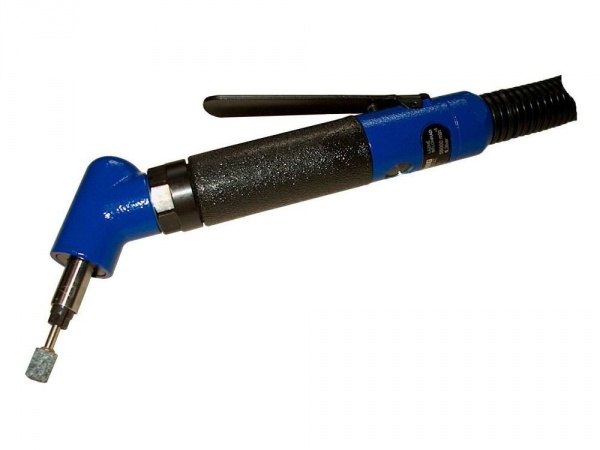

GDB013-550BX

Small, light weight and ergonomic grinder in angle-head design is especially well suited for the grinding and milling in hard-to reach areas. There are many applications areas, such as the tool-, die- and mold industry or when precision fabricating is necessary.

Well balanced 3 mm collet (Standard Equipment).

Objednací číslo
830494C
Max. power output 130 W / .17 hp
Speed (no load) 55000 min-1
Weight 0,2 kg / .44 lbs
Drive vane motor
Assortment Additional Assortment
Start safety lever
Design Basic Design
Rotation right
Air consumption (no load) 0,2 m3/min / 7.06 cfm
I.D. of air inlet hose 5 mm / .20 in
Weight (air connection) 0,25 kg / .55 lbs
Max. Ø of grinding tip 10 mm / .39 in
Max. Ø of grinding insert 3 mm / .12 in
Length of supply/exhaust hose 2/1,25 m / 6.6/4.1 ft
Collets - clamping range 3 [2; 3,25; 1/8''; 3/32''] mm
Air connection Nipple
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Collet ø 3 mm 314406
Spanner 9 mm 800401
Nipple 829220
Optional Accessories
Collet ø 2 mm 314693
Collet ø 3,25 mm 314946
Collet ø 3/32'' 314694
Collet ø 1/8'' 314407
