GDS027-320BXF

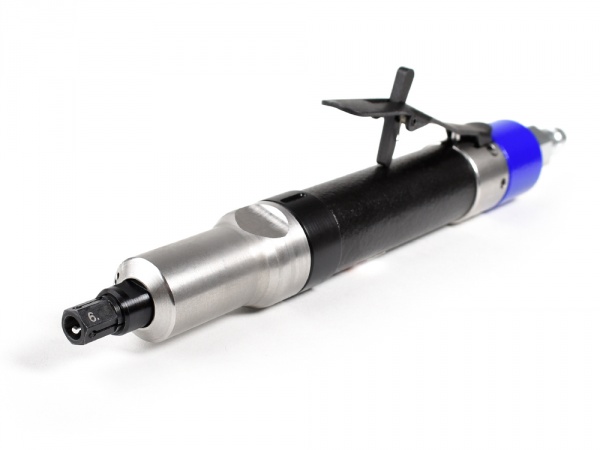

Our small grinder in inline design for the grinding with grinding tips or for the milling with grinding inserts (carbide cutters).

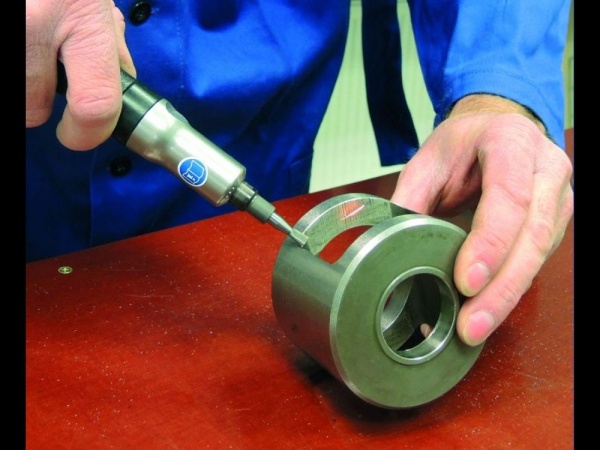

Grinding, milling, fabricating of casted parts or when used for precision operations when polishing and deburring of welding seams, the use of this small and light-weight grinder simplify any fabricating job.

Well balanced 6 mm collet (Standard Equipment), frontal exhaust (partial)

Objednací číslo
3148457G
Max. power output 270 W / .36 hp
Speed (no load) 32000 min-1
Weight 0,61 kg / 1.34 lbs
Drive vane motor
Assortment Additional Assortment
Start safety lever
Design Basic Design
Rotation right
Air consumption (loaded) 0,3 m3/min / 10.59 cfm
I.D. of air inlet hose 6 mm / .24 in
Max. Ø of grinding tip 25 mm / .98 in
Max. Ø of grinding insert 10 mm / .39 in
Length of supply/exhaust hose m
Collets - clamping range 6 [3; 4; 5; 6; 1/8''; 1/4''] mm
Air connection thread 1/4" male
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Collet ø 6 mm 312688
Spanner 9 mm 800401
Spanner 10 mm 800402
Nipple 323214
Quick release coupling 804251
Optional Accessories
Collet ø 3 mm 312681
Collet ø 4 mm 312684
Collet ø 5 mm 312686
Collet ø 6 mm 312688
Collet ø 3,175 mm 312682
Collet ø 6,35 mm 312689
