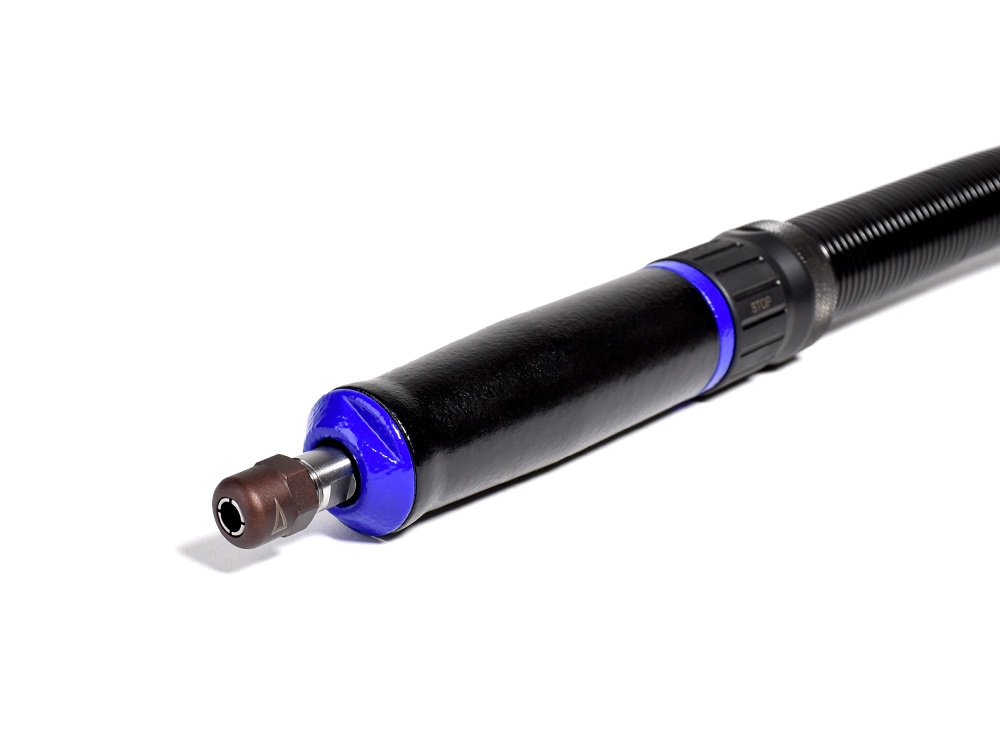

GDS030-120BY

Our air grinder is designed for the manual, peripheral- and transverse grinding with grinding tips and when fabricating with carbide cutters.

The centrifugal speed-regulator reduces a speed overload and assures an economical operation.

Your Advantages: For industrial applications, small and comfortable for good accessibility, highly durable, efficient, ergonomic, simple operation

Well balanced 6-mm collet (Standard Equipment), with supply/exhaust hose.

Objednací číslo
6060853A
Max. power output 300 W / .40 hp
Speed (no load) 12000 min-1
Weight 0,37 kg / .82 lbs
Drive vane motor
Assortment Additional Assortment
Start twist valve
Design Basic Design
Rotation right
Air consumption (no load) 0,15 m3/min / 5.30 cfm
Air consumption (loaded) 0,49 m3/min / 17.30 cfm
I.D. of air inlet hose 8 mm / .31 in
Weight (air connection) 0,5 kg / 1.10 lbs
Max. Ø of grinding tip 20 mm / .79 in
Max. Ø of grinding insert 10 mm / .39 in
Length of supply/exhaust hose 2/1 m / 6.6/3.3 ft
Collets - clamping range 6 [3; 4; 5; 1/8''; 3/16'';1/4''] mm
Air connection Nipple
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Collet ø 6 mm 6014315
Spanner 10 mm 800402
Spanner 14 mm 800410
Nipple 6072226
Optional Accessories
Collet ø 3 mm 6014316
Collet ø 4 mm 6014318
Collet ø 5 mm 6014319
Collet ø 1/8'' 6014320
Collet ø 1/4'' 6014314
Collet ø 3/16'' 6014321
