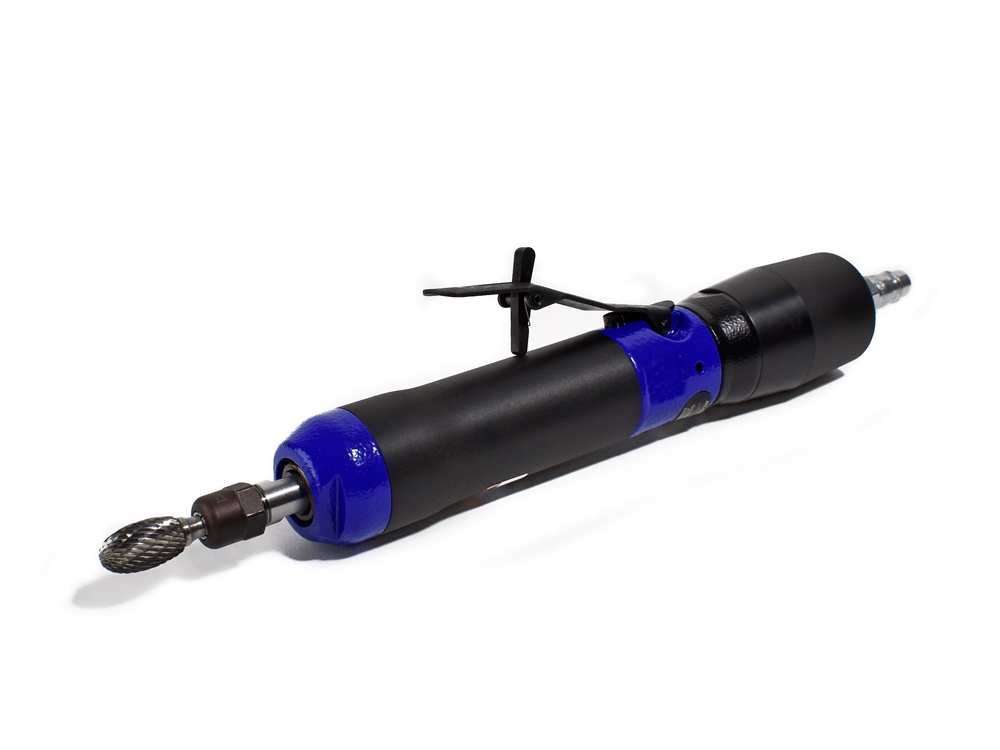

GDS030-250BXES

This Air Grinder is specially designed for grinding, milling and fabricating of steel,  aluminum parts and non-ferrous alloys. The tool is ideal for precision operations like grading and deburring of welding seams. It´s reduced size and low light weight, guarantees low vibration and makes every fabrication as convenient as possible.



Our small die-grinder is well suited for precision grinding using abrasive inserts, as well as  for the fabrication with carbide cutters in foundries. The grinder is not only well-suited for the use in the tool-, die-, and mold making industries, but due to the special features, it is also appropriate for other small industrial manufacturers.



Applications Air Grinder with Collet - Model GDS 030-250BXES:

  • Automotive Industry
  • Machine Building
  • Ship building
  • Other small industrial manufacturers



Advantages:

  • Low weight
  • Ergonomic
  • Low vibration
  • Long lifespan
Objednací číslo
6061300B
Max. power output 300 W / .40 hp
Speed (no load) 25000 min-1
Weight 0,57 kg / 1.32 lbs
Drive vane motor
Assortment Additional Assortment
Start safety lever
Design Basic Design
Rotation right
Air consumption (no load) 0,29 m3/min / 12.71 cfm
Air consumption (loaded) 0,46 m3/min / 16.24 cfm
I.D. of air inlet hose 8 mm / .31 in
Max. Ø of grinding tip 25 mm / .98 in
Max. Ø of grinding insert 12 mm / .47 in
Collets - clamping range 6 [3; 4; 5; 1/8''; 3/16''; 1/4''] mm
Air connection thread 1/4" female
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Collet ø 6 mm 6014315
Nut 310007
Spanner 10 mm 800402
Spanner 14 mm 800410
Plug 25SF AK 13 SXN 6072224
Threaded fitting G1/4" 8 mm 6074628
Optional Accessories
Collet ø 1/8'' 6014320
Collet ø 3/16'' 6014321
Collet ø 1/4'' 6014314
Collet ø 3 mm 6014316
Collet ø 4 mm 6014318
Collet ø 5 mm 6014319
Screen 65 μm 6078645
