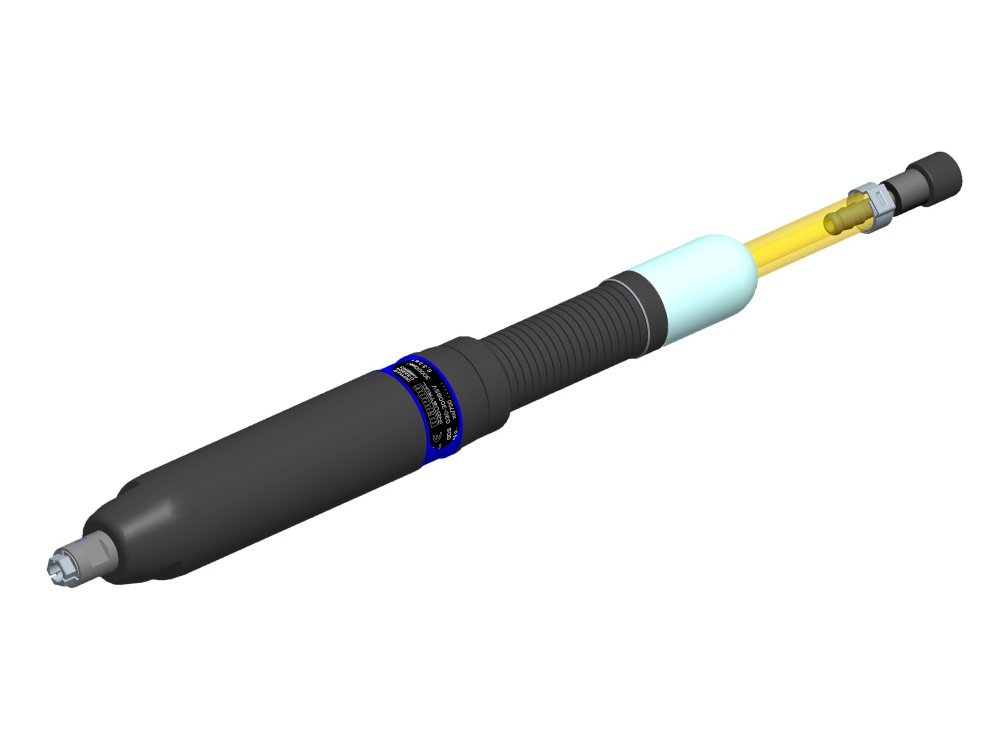

GDS030-300BSV

Our stationary grinder is well suited for the stationary grinding, the grinder originates from the handheld units of the series GDS 030.

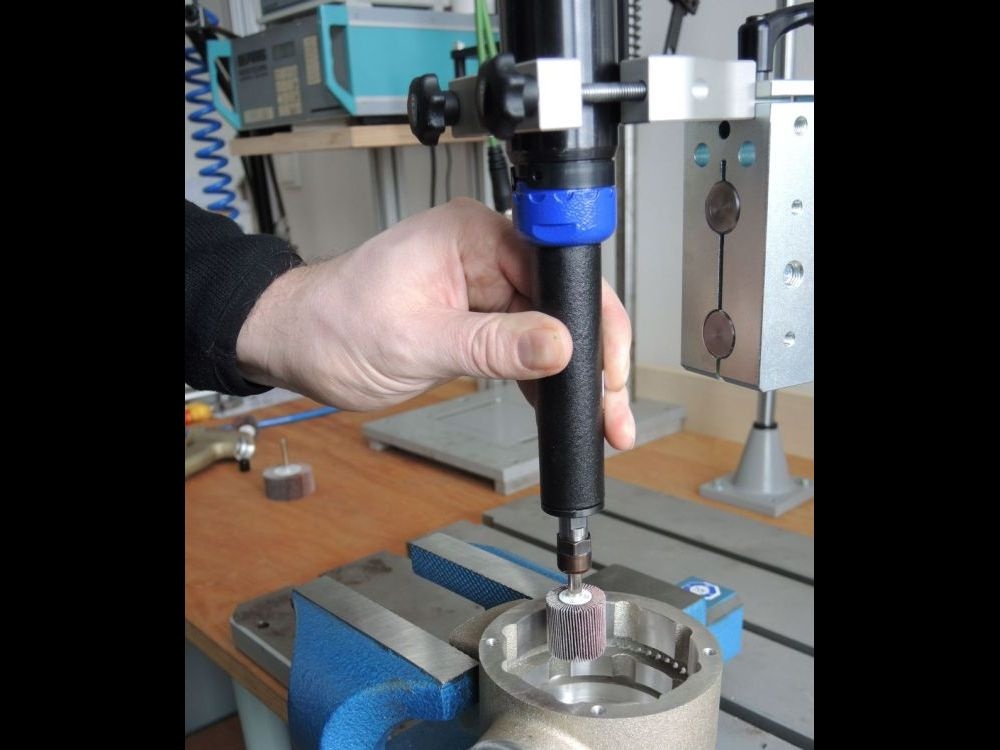

This stationary air grinder is used with grinding tips, carbide cutters or flap disks. The robust steel housing assures a high repeatability and operating safety. Additionally, the grinding spindle incorporates a highly accurate collet (available for many different shaft-diameters) and those collets guarantee the extreme high run-out accuracy of this tool.

Application examples: Fabricating of plastics, fabricating of materials in foundries, tool- and die making, deburring, for example in the precision manufacturing, polishing of welding seems

Naturally, we can also offer customer-specific tool-solutions for applications that are not as common!

Objednací číslo
6061173A
Max. power output 300 W / .40 hp
Speed (no load) 30000 min-1
Weight 0,7 kg / 1.54 lbs
Drive vane motor
Assortment Additional Assortment
Start remote start
Design Basic Design
Rotation right
Air consumption (no load) 0,45 m3/min / 15.89 cfm
Air consumption (loaded) 0,45 m3/min / 15.89 cfm
I.D. of air inlet hose 6 mm / .24 in
Max. Ø of grinding tip 20 mm / .79 in
Max. Ø of grinding insert 6 mm / .24 in
Max. Ø of flap wheel 25 mm / .98 in
Length of supply/exhaust hose 2/1,25 m / 6.6/4.1 ft
Collets - clamping range 6 [3; 4; 5; 1/8''; 3/16'';1/4''] mm
Air connection Nipple
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Collet ø 6 mm 830648
Spanner 11 mm 805491
Spanner 6/ 9 mm 830649
Nipple 829220
Optional Accessories
Foot pedal 6080498
Collet ø 3 mm 830650
Collet ø 4 mm 830702
Collet ø 5 mm 830703
Collet ø 1/8'' 830651
Collet ø 1/4'' 830653
Collet ø 3/16'' 830652
