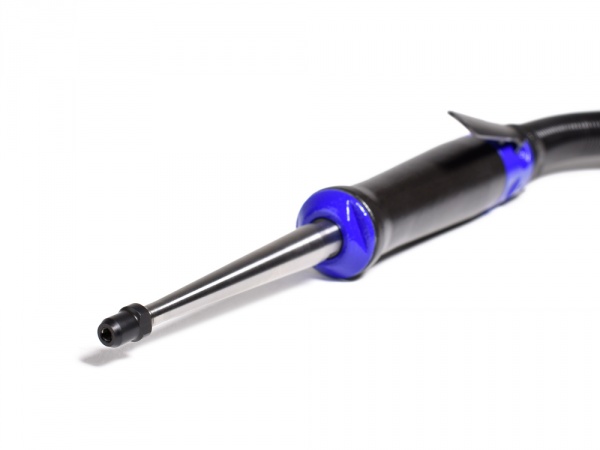

GDS030-300QY

Air-operated grinder with collet is suited for the manual radial- and lateral grinding with grinding-wheels. The grinder can also be used with carbide grinding inserts.

This grinder is generally used for the treatment of forms, dies, and punches; and to finish different type of cast iron, welding-, or work surface. We can use these grinders for less exactiva adjustment in heavily open place.

The grinder can also be used for the treatment of metals, alloys, plastics, and hard rubber.

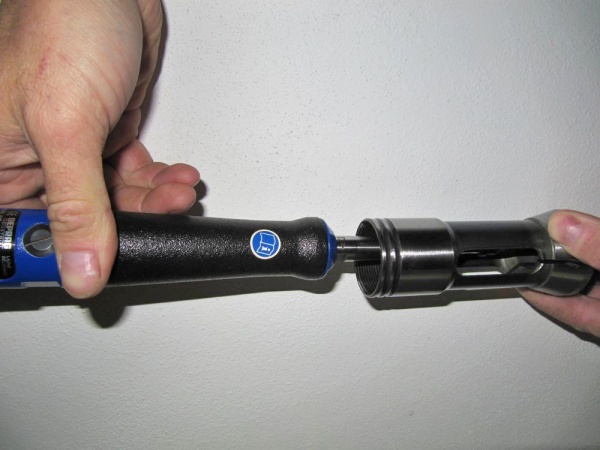

Diameter of collet, which ist tightly integrated into the spindle, is 3 mm.

The best grinder is best used in hard to access areas, such as the automotive industry.

Your Advantages: For industrial applications, small and comfortable for good accessibility, highly durable, efficient, ergonomic, simple operation

Objednací číslo
6060904A
Max. power output 300 W / .40 hp
Speed (no load) 30000 min-1
Weight 0,4 kg / .88 lbs
Drive vane motor
Assortment Additional Assortment
Start twist valve
Design Extended, slender version
Rotation right
Air consumption (no load) 0,45 m3/min / 15.89 cfm
I.D. of air inlet hose 6 mm / .24 in
Weight (air connection) 0,32 kg / .71 lbs
Max. Ø of grinding tip 10 mm / .39 in
Max. Ø of grinding insert 6 mm / .24 in
Length of supply/exhaust hose 2/1,25 m / 6.6/4.1 ft
Air connection Nipple
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Spanner 8 mm 800399
Spanner 11 mm 805491
Nipple 829220
