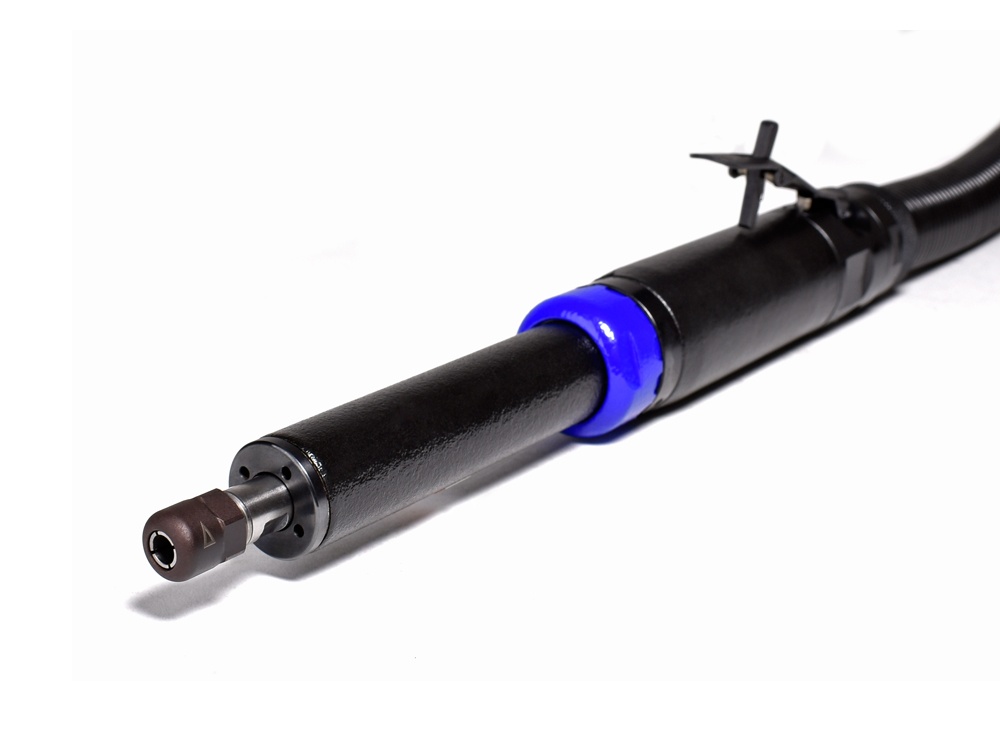

GDS050-200BXFI

Our pneumatic grinder fulfill all requirements for an optimum fabrication - optimum material removal using a carbide cutter (grinding insert) or grinding tip, for consistent and quality performance.

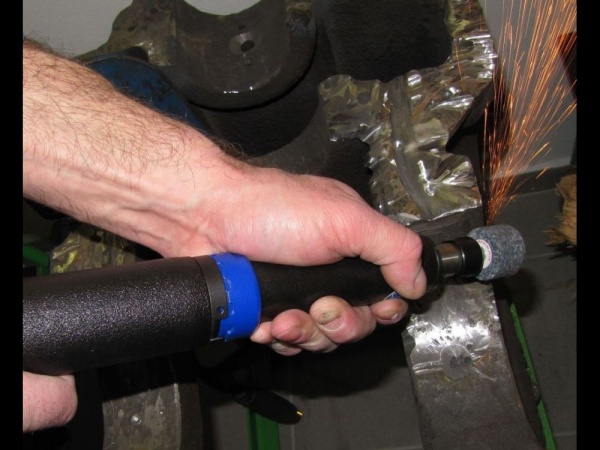

This midget grinder is used mainly for the treatment of plastic and metals in foundries, in the entire mechanical engineering industry, the  tool- and die industry, the appliance-industry to level, de-burr or treat cast-iron parts.

Speed governor for optimal performance. Cold-isolated housing.

Your advantages: For industrial applications, high power-output at a low weight, highly durable, efficient, ergonomic, simple operation

Well balanced 6 mm collet (Standard Equipment), frontal exhaust (partial), with supply/exhaust hose.

Objednací číslo
6061046A
Max. power output 500 W / .67 hp
Speed (no load) 20000 min-1
Weight 0,9 kg / 1.98 lbs
Drive vane motor
Assortment Standard assortment
Start safety lever
Design Basic Design, frontal exhaust (partial)
Rotation right
Air consumption (no load) 0,3 m3/min / 10.6 cfm
Air consumption (loaded) 0,8 m3/min / 28.20 cfm
I.D. of air inlet hose 10 mm / .39 in
Weight (air connection) 0,45 kg / .99 lbs
Max. Ø of grinding tip 32 mm / 1.26 in
Max. Ø of grinding insert 16 mm / .63 in
Length of supply/exhaust hose 2/1 m / 6.6/3.3 ft
Collets - clamping range 6 [3; 4; 5; 1/8''; 3/16'';1/4''] mm
Air connection Nipple
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Collet ø 6 mm 6014315
Spanner 10 mm 800402
Spanner 14 mm 800410
Nipple 315071
Optional Accessories
Collet ø 3 mm 6014316
Collet ø 4 mm 6014318
Collet ø 5 mm 6014319
Collet ø 1/8'' 6014320
Collet ø 1/4'' 6014314
Collet ø 3/16'' 6014321
