GDS050-200WXI

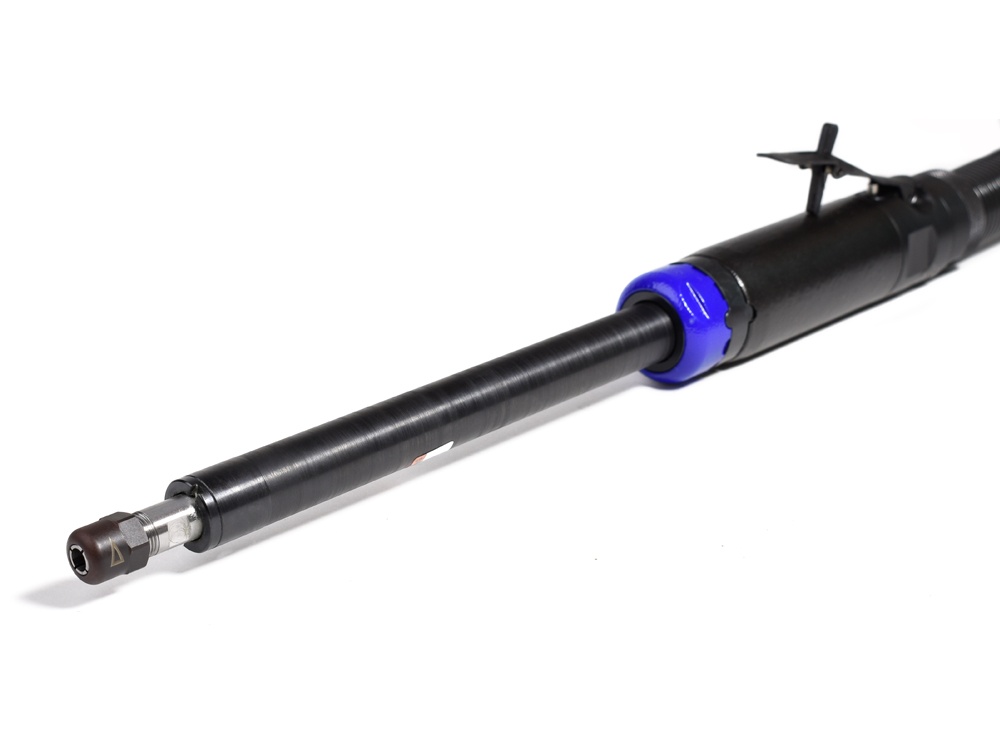

Our pneumatic die grinder for the optimum grinding with grinding tips or for the fabricating with grinding inserts (carbide cutters).
This tool features a small grip-diameter, a collet with connector nut for an improved clamping force.
This air grinder is equipped with an integrated speed-regulator, that holds the speed of the tool constant, even when tool is operated at full load. Cold-isolated housing.
Your advantages: For industrial applications, high power-output at low weight, highly durable, efficient, ergonomic, simple operation
Well balanced 6 mm collet (Standard Equipment), with supply/exhaust hose
Objednací číslo
6061004A
| Max. power output | 500 W / .67 hp |
|---|---|
| Speed (no load) | 20000 min-1 |
| Weight | 0,95 kg / 2.09 lbs |
| Drive | vane motor |
| Assortment | Standard assortment |
| Start | safety lever |
| Design | Extension design |
| Rotation | right |
| Air consumption (no load) | 0,3 m3/min / 10.6 cfm |
| Air consumption (loaded) | 0,8 m3/min / 28.20 cfm |
| I.D. of air inlet hose | 10 mm / .39 in |
| Weight (air connection) | 0,45 kg / .99 lbs |
| Max. Ø of grinding tip | 32 mm / 1.26 in |
| Max. Ø of grinding insert | 16 mm / .63 in |
| Length of supply/exhaust hose | 2/1 m / 6.6/3.3 ft |
| Collets - clamping range | 6 [3; 4; 5; 1/8''; 3/16'';1/4''] mm |
| Air connection | Nipple |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Collet ø 6 mm |
|
6014315 |
|---|---|---|
| Spanner 10 mm |
|
800402 |
| Spanner 14 mm |
|
800410 |
| Nipple |
|
315071 |
Optional Accessories
| Collet ø 3 mm |
|
6014316 |
|---|---|---|
| Collet ø 4 mm |
|
6014318 |
| Collet ø 5 mm |
|
6014319 |
| Collet ø 1/8'' |
|
6014320 |
| Collet ø 1/4'' |
|
6014314 |
| Collet ø 3/16'' |
|
6014321 |
