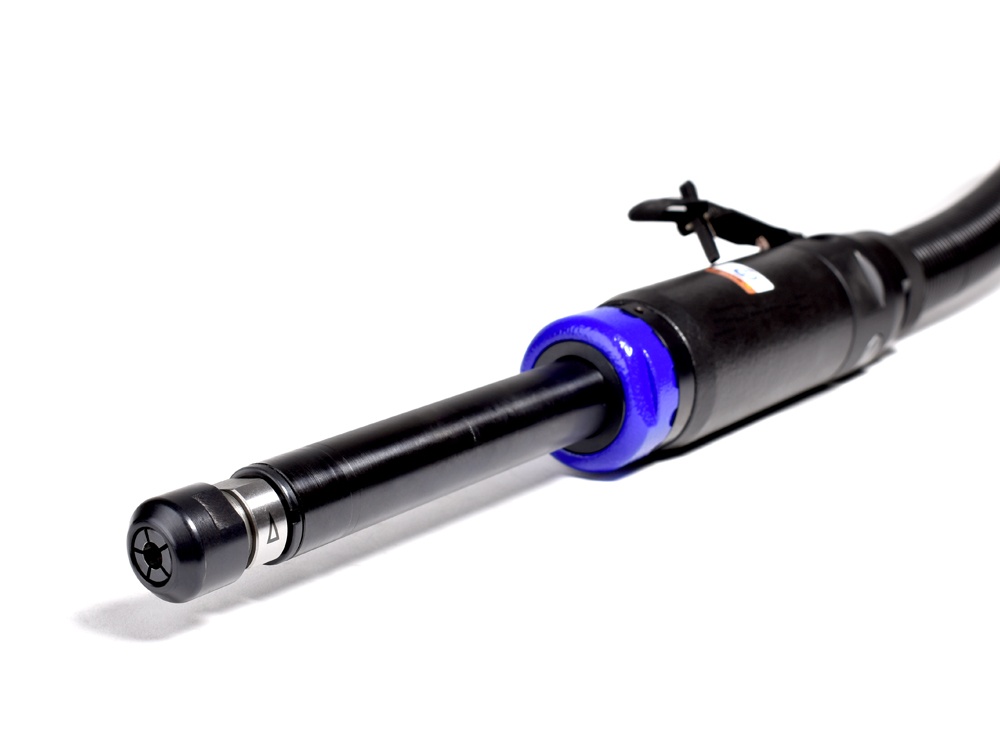

GDS100-153VXI

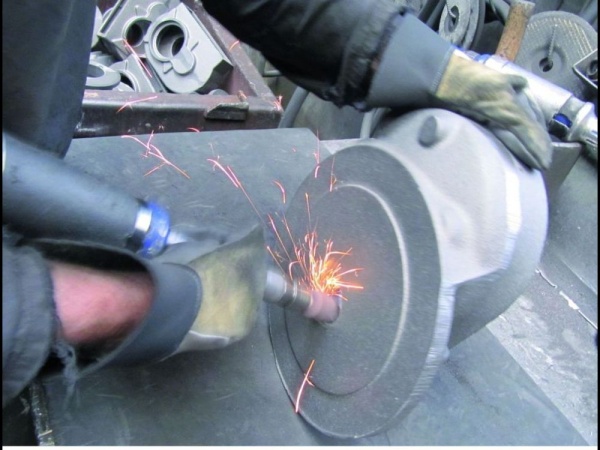

Our powerful die grinder is designed to fulfill the highest quality demands when the grinder is used with grinding tips or inserts on industrial applications - in foundries, in the tool- and die making industry or in the precision fabrication industry. The grinder is well-suited for the deburring and polishing of welnding seems and for the processing of casted parts.

Your advantages: For industrial applications, high power-output at a low weight, highly durable, efficient, ergonomic, simple operation.

Well balanced 6 mm collet (Standard Equipment)

Objednací číslo
6060594A
Max. power output 1000 W / 1.34 hp
Speed (no load) 15300 min-1
Weight 1,7 kg / 3.75 lbs
Drive vane motor
Assortment Additional Assortment
Start safety lever
Design Long design
Rotation right
Air consumption (no load) 0,5 m3/min / 17.66 cfm
I.D. of air inlet hose 12 mm / .47 in
Weight (air connection) 0,5 kg / 1.10 lbs
Max. Ø of grinding tip 50 mm / 1.97 in
Max. Ø of grinding insert 16 mm / .63 in
Length of supply/exhaust hose 2/1 m / 6.6/3.3 ft
Collets - clamping range 6 [8; 9; 3/16''; 5/16''; 1/4''] mm
Air connection Nipple
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Collet ø 6 mm 315018
Spanner 19 mm 800408
Spanner 22 mm 800416
Nipple 829461
Optional Accessories
Collet ø 8 mm 315073
Collet ø 9 mm 315089
Collet ø 1/4'' 315074
Collet ø 3/16'' 315088
Collet ø 5/16'' 315090
