GDS100-153WXI

Our air die grinder is designed to fulfill the highest quality demands when the grinder is used on industrial applications - in foundries, in the tool- and die making industry or in the precision fabrication industry. The grinder is well-suited for the deburring and polishing of weling seems and for the processing of casted parts.

Cold-insolated housing.

The integrated, reaction-fast speed regulator, which keeps the speed steady under load, allows for an optimal metal cutting.

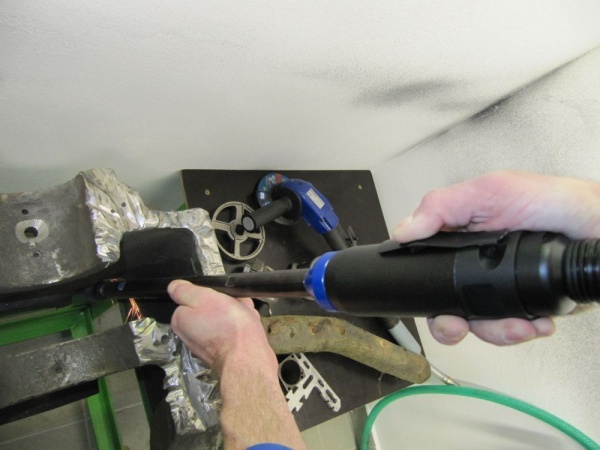

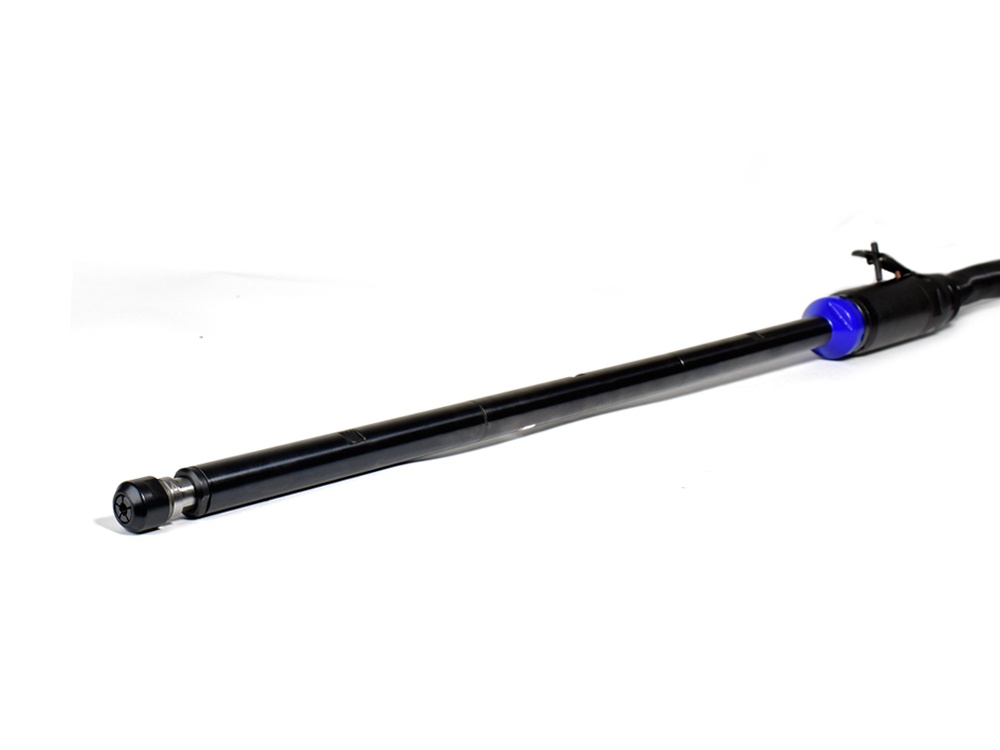

The grinder that features an extended spindle is ideal for the cleaning of pipes and the grinding in hard-to reach areas. Please Note: When using this grinder for pipe-cleaning, attach lamellar sanding discs or wire brushes only!

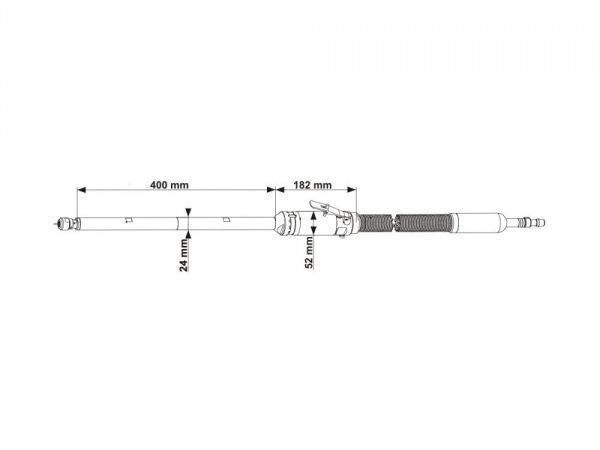

The modular construction of this grinder allows to extend the spindle from 400 mm (Model W.I) to 1200 mm (Model W4.I). 1, 2, 3, 4  - number of linked extensions. Adapter extension length of this grinder is 400 mm.

Objednací číslo
830516A
Max. power output 1000 W / 1.34 hp
Speed (no load) 15300 min-1
Weight 2,4 kg / 5.29 lbs
Drive vane motor
Assortment Additional Assortment
Start safety lever
Design Extension design
Rotation right
Air consumption (no load) 0,5 m3/min / 17.66 cfm
Air consumption (loaded) 1,3 m3/min / 45.9 cfm
I.D. of air inlet hose 12 mm / .47 in
Weight (air connection) 0,5 kg / 1.10 lbs
Max. Ø of flap wheel 50 mm / 1.97 in
Max. Ø of brush wheel 50 mm / 1.97 in
Length of supply/exhaust hose 2/1 m / 6.6/3.3 ft
Collets - clamping range 6 [8; 9; 3/16''; 5/16''; 1/4''] mm
Air connection Nipple
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Collet ø 6 mm 315018
Spanner 15 mm 800409
Spanner 22 mm 800416
Nipple 829461
Optional Accessories
Collet ø 8 mm 315073
Collet ø 9 mm 315089
Collet ø 1/4'' 315074
Collet ø 3/16'' 315088
Collet ø 5/16'' 315090
