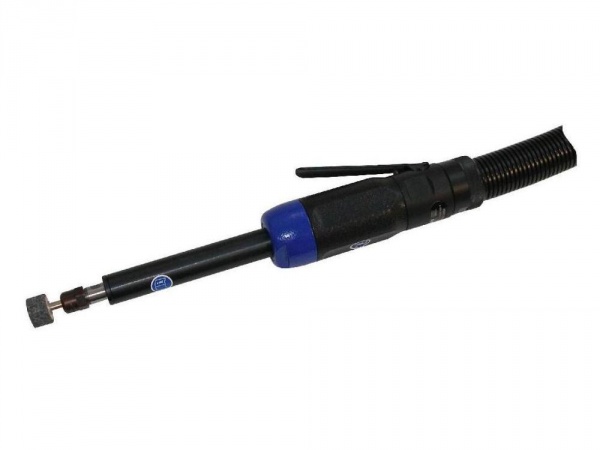

GDST050-550VXO

Our pneumatic grinder fulfill all requirements for an optimum fabrication - for an optimum material removal using a carbide cutter (grinding insert) or grinding tip, for consistent and quality performance.

This turbine grinder operates oilfree and is therefore practically maintenance free. Optimum fabrication results. Due to the high speed, these toll is especially well-suited to the use with carbide cutters. The low weight assures a fatique-free effort. Includes a speed governor for optimal performance. Lower levels of vibration- and noise emissions compared to standard air-grinders. Your advantage. Extreme low air consumption.

Well balanced 6 mm collet (Standard Equipment).  With supply/exhaust hose.

Objednací číslo
6061110A
Max. power output 500 W / .67 hp
Speed (no load) 55000 min-1
Weight 0,7 kg / 1.54 lbs
Drive turbine drive
Assortment Additional Assortment
Start safety lever
Design Long design
Rotation right
Air consumption (no load) 0,13 m3/min / 4.59 cfm
Air consumption (loaded) 0,74 m3/min / 26.13 cfm
I.D. of air inlet hose 10 mm / .39 in
Max. Ø of grinding tip 16 mm / .63 in
Max. Ø of grinding insert 12 mm / .47 in
Length of supply/exhaust hose 2/1 m / 6.6/3.3 ft
Collets - clamping range 6 [3; 4; 5; 1/8''; 3/16'';1/4''] mm
Air connection Nipple
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Collet ø 6 mm 6014315
Spanner 10 mm 800402
Spanner 14 mm 800410
Nipple 315071
Optional Accessories
Collet ø 3 mm 6014316
Collet ø 4 mm 6014318
Collet ø 5 mm 6014319
Collet ø 1/8'' 6014320
Collet ø 1/4'' 6014314
Collet ø 3/16'' 6014321
