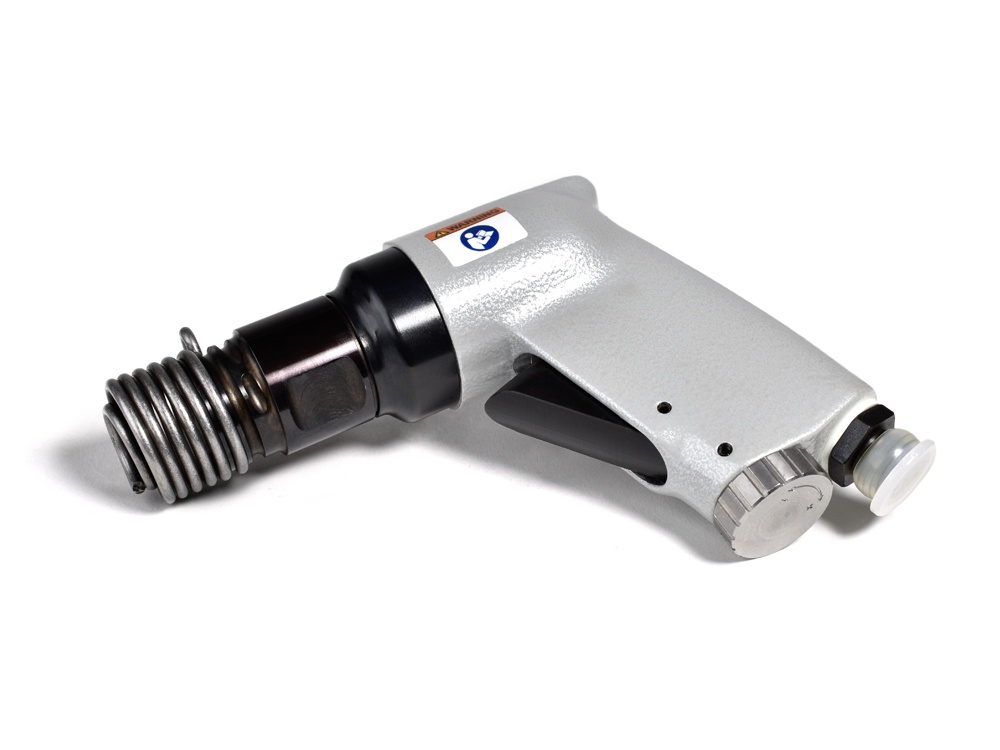

HC007-R10P
Our small chipping hammer with pistolgrip is used in the die casting-, container construction, ship building-, bridge- and construction industry, as well as in foundries and welding shops.
Your advantages: Easy exchange of the chisels, highly durable, simple operation.
Objednací číslo
2104091A
| Weight | 0,7 kg / 1.54 lbs |
|---|---|
| Impact per minute | 4000 min-1 |
| Insertion tip | ø 10,3x36 mm |
| Air consumption (no load) | 0,15 m3/min / 5.30 cfm |
| Assortment | Additional Assortment |
| Start | trigger |
| Design | Pistolgrip Design |
| I.D. of air inlet hose | 6 mm / .24 in |
| Piston-Ø | 12 mm / .47 in |
| Piston lenght | 26 mm / 1.02 in |
| Piston stroke | 18 mm / .71 in |
| Air connection | thread 1/4" male |
| Impact per minute - Hz | 67 Hz |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Hose Nozzle |
|
410532 |
|---|---|---|
| Screw cap |
|
410533 |
| Retainer ring |
|
400719 |
Optional Accessories

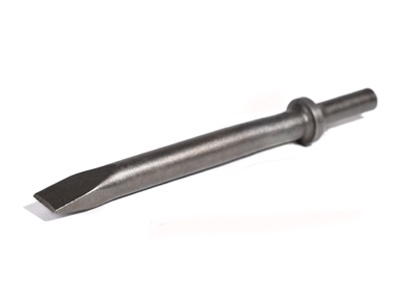

| Flat chisel, Ø 10,3x36 mm, length 156 mm, width 14 mm, hardmetal |
|
360401 |
|---|---|---|

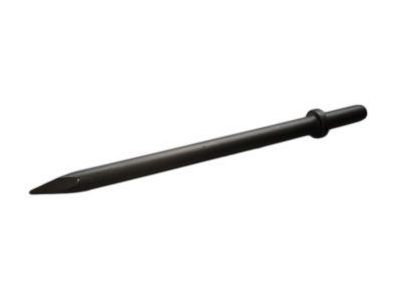

| Chisel pointed, Ø 10,3x36 mm, length 156 mm, hardmetal |
|
360407 |

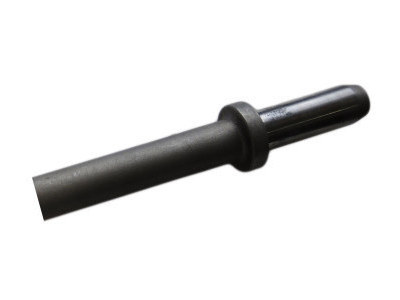

| Chisel, Ø 10,3x36 mm, length 156 mm, hardmetall |
|
360433 |
