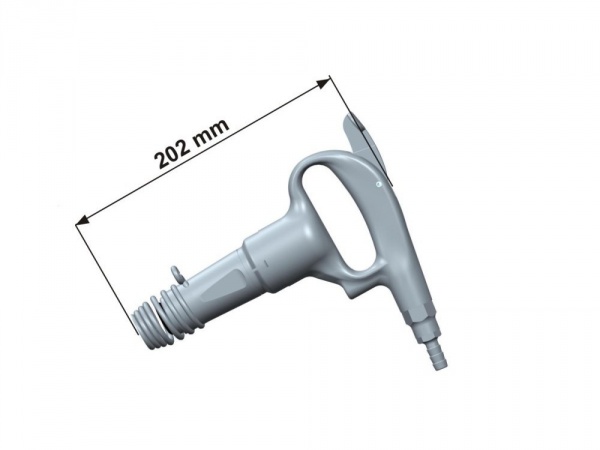

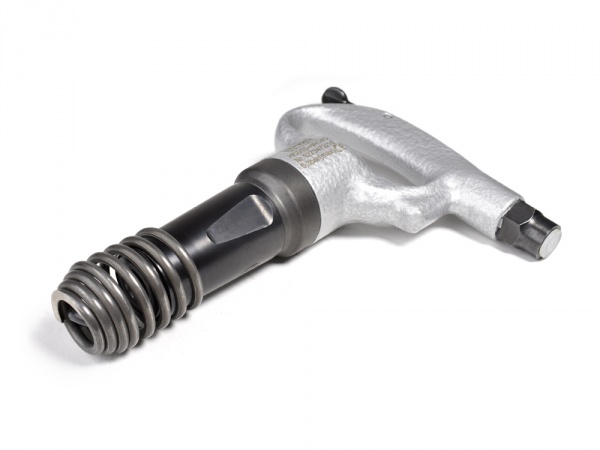

HC010-HR14D
Our small chipping hammer with fist grip is used in the die casting-, container construction, ship building-, bridge- and construction industry, as well as in foundries and welding shops.
Your advantages: Easy exchange of the chisels, highly durable, simple operation.
Objednací číslo
2103441B
| Weight | 1,9 kg / 4.19 lbs |
|---|---|
| Impact per minute | 3000 min-1 |
| Insertion tip | Hex. ø 14,3/12,5x50 mm |
| Air consumption (no load) | 0,3 m3/min / 10.6 cfm |
| Assortment | Additional Assortment |
| Start | fist grip design |
| Design | With closed handle |
| I.D. of air inlet hose | 10 mm / .39 in |
| Piston-Ø | 20 mm / .79 in |
| Piston lenght | 33 mm / 1.30 in |
| Piston stroke | 53 mm / 2.09 in |
| Rivet-Ø Alu | 5 mm / .20 in |
| Rivet-Ø Steel | 3 mm / .12 in |
| Air connection | thread 1/4" female |
| Impact per minute - Hz | 50 Hz |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Hose nozzle |
|
410541 |
|---|---|---|
| Retainer ring |
|
400715 |
| Ring |
|
210157 |
Optional Accessories
| Flat chisel, Ø 14,3/12,5x50 mm, length 210 mm, width 25 mm, hardmetal |
|
360406 |
|---|---|---|
| Chisel pointed Ø 14,3/12,5x50 mm, length 210 mm, hardmetall |
|
360412 |
| Chisel, Ø 14,3/12,5x50 mm, length 210 mm |
|
360438 |
| Charing chisel Ø 14,3/12,5x50 mm, length 240 mm, width 40 mm |
|
370065/1 |
| Tooth chisel, 16 Teeth, 6mm appart, shaft 6 mm, Ø 14,3/12,5x50 mm, length 200 mm |
|
370162 |
| Ring |
|
210145 |
