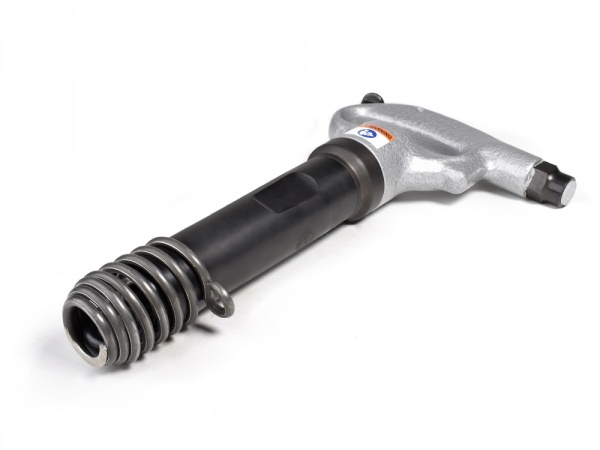

HC023-R14D
Our small chipping hammer with fist grip is used in the die casting-, container construction, ship building-, bridge- and construction industry, as well as in foundries and welding shops.
Your advantages: Easy exchange of the chisels, highly durable, simple operation.
Objednací číslo
2103461A
| Insertion tip | ø 14,3x50 mm |
|---|---|
| Weight | 2,3 kg / 5.07 lbs |
| Impact per minute | 2000 min-1 |
| Air consumption (no load) | 0,35 m3/min / 12.36 cfm |
| Assortment | Additional Assortment |
| Start | fist grip design |
| Design | With closed handle |
| I.D. of air inlet hose | 10 mm / .39 in |
| Piston-Ø | 20 mm / .79 in |
| Piston lenght | 55 mm / 2.17 in |
| Piston stroke | 98 mm / 3.86 in |
| Rivet-Ø Alu | 6 mm / .24 in |
| Rivet-Ø Steel | 5 mm / .20 in |
| Air connection | thread 1/4" female |
| Impact per minute - Hz | 33 Hz |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Hose nozzle |
|
410541 |
|---|---|---|
| Retainer ring |
|
400715 |
| Ring |
|
210157 |
Optional Accessories
| Flatchisel, Ø 14,3x50 mm, length 210 mm, width 25 mm, hardmetal |
|
360405 |
|---|---|---|
| Chisel pointed, Ø 14,3x50 mm, length 210 mm, hardmetall |
|
360411 |
| Chisel, Ø 14,3x50 mm, length 210 mm, hardmetall |
|
360437 |
| Ring |
|
210145 |
