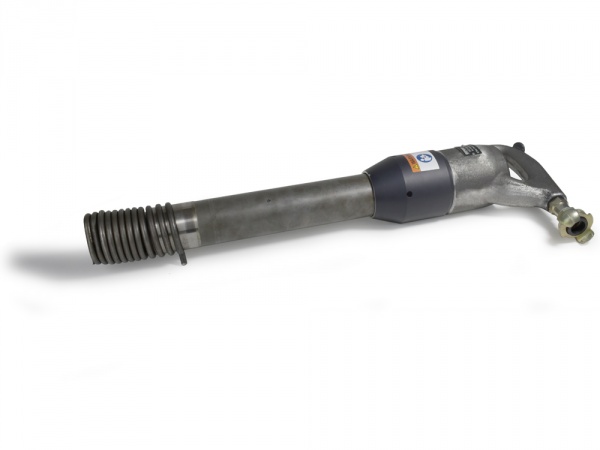

HCD140-R31V
Riveting hammers - for rivet busting and rivet-removal in the steel-construction, in boilers, containers and on ships.
You can use our robust riveting hammers in heavy-duty industrial areas - in 24/7 operations.
The easy and quickly exchange of the chisels allow that the riveting hammer can be retooled for different operations.
Our air hammers correspond to the highest requirements of the industry.
Objednací číslo
8119841A
| Shaft design for inserting tools | Cylindrical shank R31x70 |
|---|---|
| Design | thumb handle |
| Start | trigger |
| Impact per minute | 750 min-1 |
| Rivet-Ø Steel | 16 mm |
| Air consumption (loaded) | 0,95 m3/min / 33.55 cfm |
| piston diameter | 30 mm / 1,2 inch |
| Piston lenght | 110 mm / 4.33 in |
| Piston stroke | 301 mm / 11,9 in |
| Weight | 15 kg / 33.07 lbs |
| I.D. of air inlet hose | 16 mm / .63 in |
| Thread Size | G ⅜“ i |
| Sound pressure level Lpa podle ČSN EN ISO 11 201 | 100 dB(A) |
| Vibration according ČSN EN ISO 15744: | 15.53 |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment

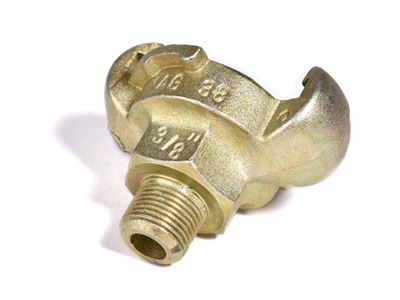

| Quick release coupling |
|
804350 |
|---|
Optional Accessories
| Chisel - unfinished, shaft Ø 31x70 mm, length 280 mm |
|
360340 |
|---|---|---|
| Splitting chisel, shaft Ø31x70 mm, length 280 mm |
|
360341 |

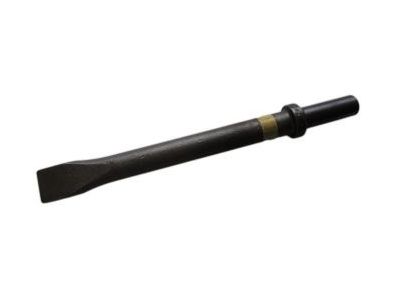

| Chisel - flat, shaft Ø 31x70 mm, length 280 mm |
|
360342 |
