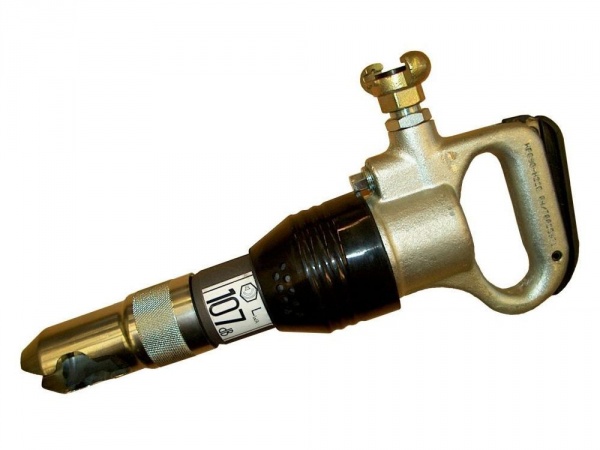

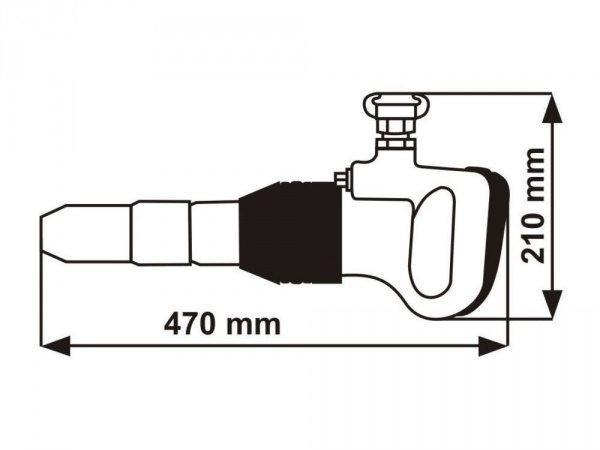

HP090-H22B

Our air pick hammer is used with drill-, or flat chisels to demolish stonework and concrete, for the use in road-construction and tunneling, as well as in mining.

Due to the weight of this hammer, it is possible to work in a vertical plane - in quarries and in the building industry. Your advantages: Highlys durable, simple operation, robust.

Objednací číslo
6060012A
Weight 9 kg / 19.84 lbs
Impact per minute 1590 min-1
Insertion tip Hex. 22x82 mm
Air consumption (no load) 0,9 m3/min / 31.80 cfm
Assortment Additional Assortment
I.D. of air inlet hose 16 mm / .63 in
Air connection G 3/4'' male
Impact per minute - Hz 27 Hz
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Quick release coupling 6072326
Optional Accessories

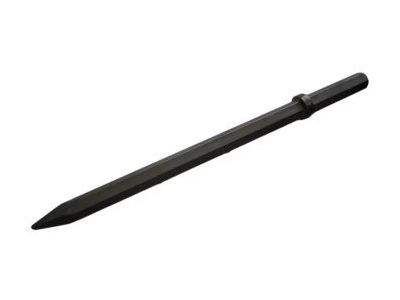

Chisel pointed, HR 22x82 mm, length 350 mm 806400

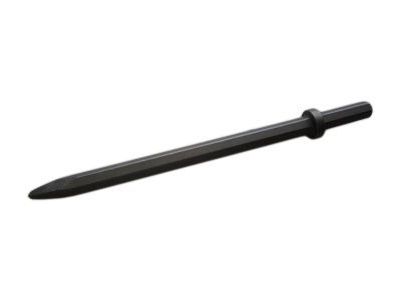

Chisel pointed, HR 22x82 mm, length 450 mm 6074509

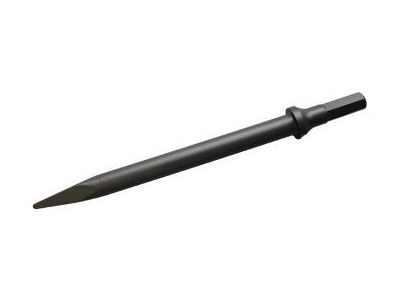

Chisel pointed, HR 22x82 mm, length 600 mm 806402

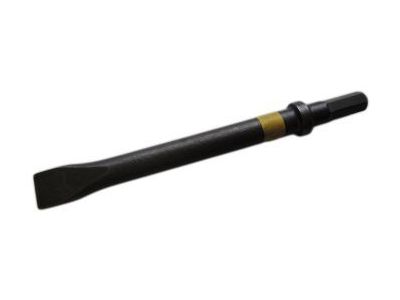

Flat chisel, HR 22x82 mm, length 400 mm, 75 mm 806410

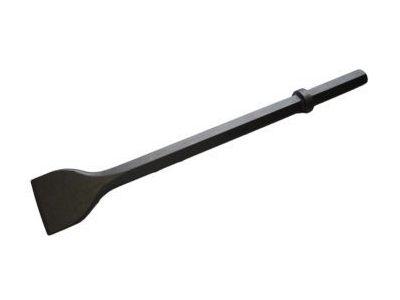

Flat chisel, HR 22x82 mm, length 400 mm, width 120 mm 806411

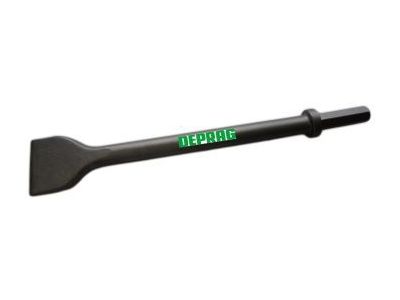

Flat chisel, HR 22x82 mm, length 480 mm, width 125 mm 6074511

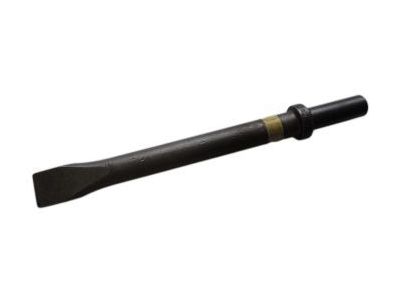

Flat chisel, HR 22x82 mm, length 450 mm, width 25 mm 806406
Flat chisel, HR 22x82 mm, length 450 mm, width 75 mm 6074507

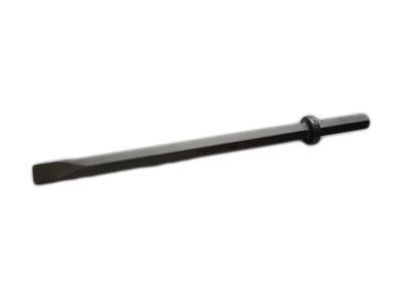

Flat chisel, HR 22x82 mm, length 550 mm, width 25 mm 6074510

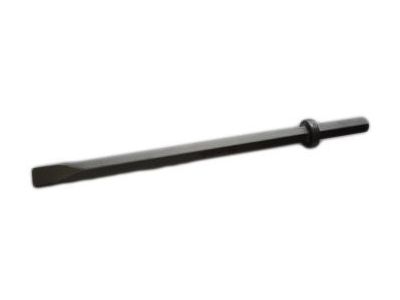

Flat chisel, HR 22x82 mm, length 600 mm, width 25 mm 806407
