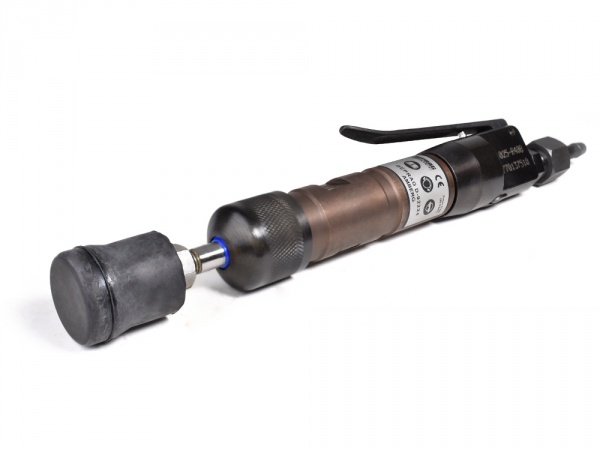

HR025-R40B

Our impact hammer is used in many applications, such as the scaling of forgings when used with tampered- or rubber butts, the cleaning of Open-Hearth- or Electric Ovens, for the compacting of concrete and dirt during construction, as well as for fabrication in the cement- and stone production.

The hammer of type HR 025-R40B is expecially suitable for table-top operation or for small surfaces, e.g. for ramming small core boxes, etc.

Your advantages: Highlys durable, simple operation, robust.

Objednací číslo
6060020A
Weight 2,5 kg / 5.51 lbs
Impact per minute 1200 min-1
Air consumption (no load) 0,2 m3/min / 7.06 cfm
Assortment Additional Assortment
I.D. of air inlet hose 10 mm / .39 in
Piston-Ø 20 mm / .79 in
Piston stroke 80 mm / ø 3.15 in
Dimensions of rammer ø 40 mm / 1.57 in
Spindle thread M12
Air connection G 1/2'' male
Impact per minute - Hz 20 Hz
Operating pressure 6,3 bar / 90 psi
Standard Equipment

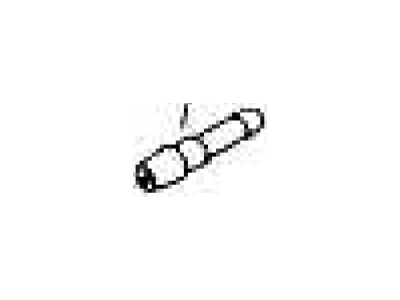

Hose Nozzle 6072462

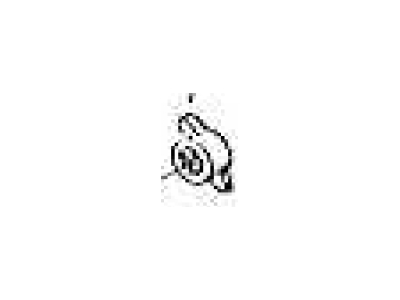

Screw cap 6072393

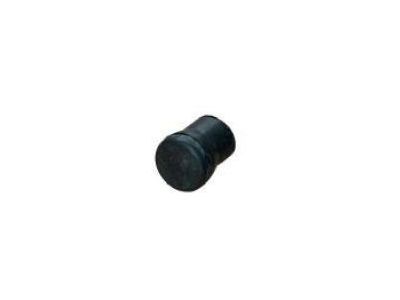

Rammer 6072263
