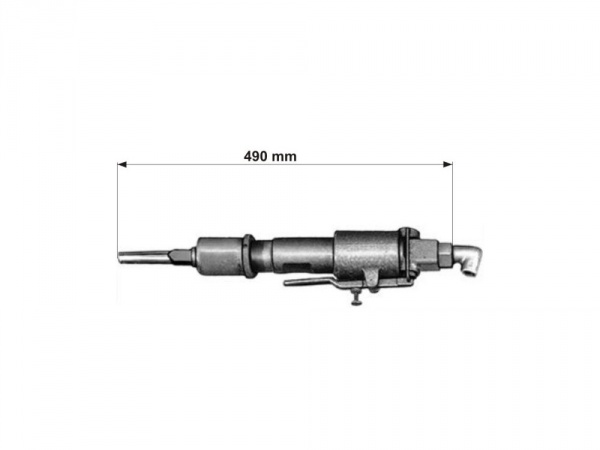

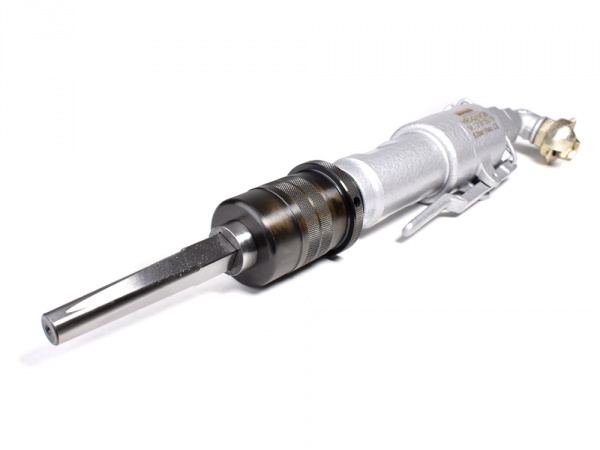

HR042-MK2B
Our impact hammer with MORSE taper is used in many applications, such as the scaling of forgings when used with tampered- or rubber butts, the cleaning of Open-Hearth- or Electric Ovens, for the compacting of concrete and dirt during construction, as well as for fabrication in the cement- and stone production.
The light-weight rammer of type HR 042-MK2B is also well-suited for operation in the core production.
Your advantages: Highlys durable, simple operation, robust.
Objednací číslo
2701441A
| Weight | 4,2 kg / 9,26 lbs |
|---|---|
| Impact per minute | 850 min-1 |
| Air consumption (no load) | 0,28 m3/min / 9.89 cfm |
| Assortment | Additional Assortment |
| I.D. of air inlet hose | 13 mm / .51 in |
| Piston-Ø | 27,5 mm / 1.08 in |
| Piston stroke | 119,5 mm / 4.70 in |
| Morse taper | 2 |
| Air connection | thread 1/2" female |
| Impact per minute - Hz | 14 Hz |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment

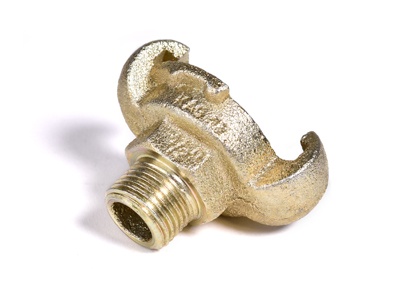

| Quick release coupling |
|
804351 |
|---|
Optional Accessories
| Butt (rubber MK 2, Ø 40 mm) |
|
804837 |
|---|---|---|

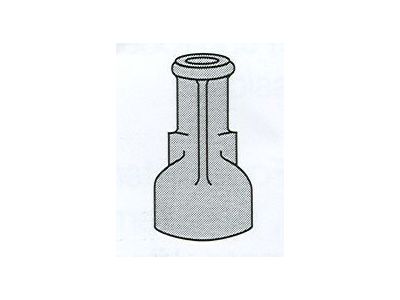

| Butt (cast iron MK 2, Ø 60 mm) |
|
804827 |
| Butt (rubber MK 2, Ø 60 mm) |
|
804838 |
| Butt (cast iron, MK 2, quadratic - 60x60 mm) |
|
804847 |

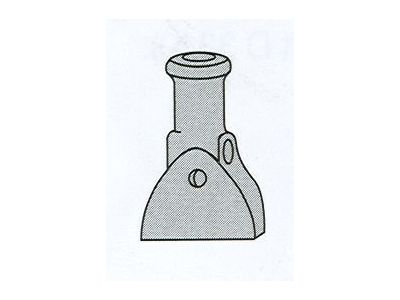

| Butt (rubber MK 2, quadratic - 80x80 mm) |
|
404856 |

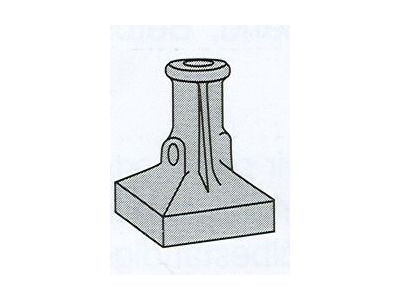

| Butt (cast iron, MK 2, square - 60x20 mm) |
|
804862 |
| Butt (rubber MK 2, square 75x45 mm) |
|
804871 |
| Butt (rubber MK 2, wedge - 50x25 mm) |
|
804884 |
| Butt (rubber MK 2, wedge 70x50 mm) |
|
804885 |

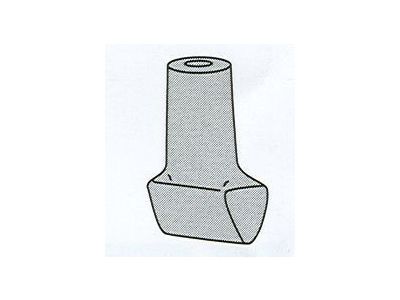

| Butt (rubber MK 2, wedge 75x25 mm) |
|
804886 |
| Butt (rubber MK 2, wedge 70x50 mm) |
|
804887 |
| Chisel to butt-releasing |
|
804890 |
