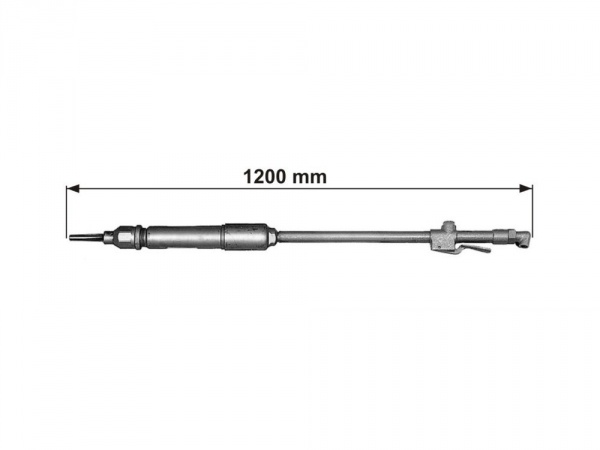

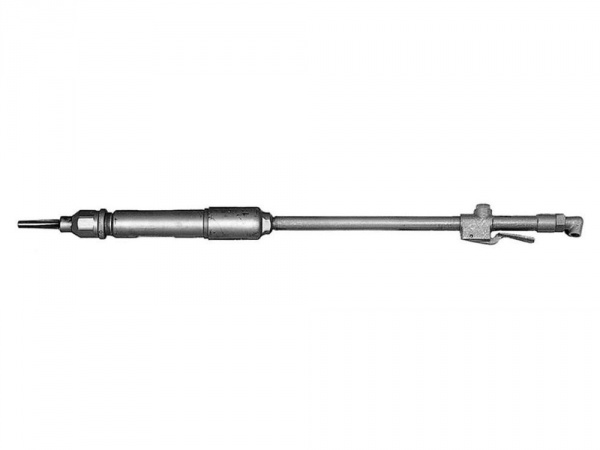

HR093-MK2B

Our impact hammer with MORSE taper is used in many applications, such as the scaling of forgings when used with tampered- or rubber butts, the cleaning of Open-Hearth- or Electric Ovens, for the compacting of concrete and dirt during construction, as well as for fabrication in the cement- and stone production.

Your advantages: Highlys durable, simple operation, robust.

Objednací číslo
2701571A
Weight 9,3 kg / 20.50 lbs
Impact per minute 650 min-1
Assortment Additional Assortment
I.D. of air inlet hose 13 mm / .51 in
Air consumption (no load) 0,8 m3/min / 28.25 cfm
Piston-Ø 32 mm / 1.26 in
Piston stroke 160 mm / ø 6.30 in
Morse taper 2
Air connection thread 1/2" female
Impact per minute - Hz 10,8 Hz
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Quick release coupling 804351
Optional Accessories
Butt (rubber MK 2, Ø 40 mm) 804837
Butt (cast iron MK 2, Ø 60 mm) 804827
Butt (rubber MK 2, Ø 60 mm) 804839

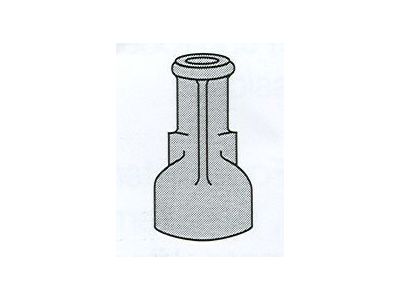

Butt (cast iron MK 2, Ø 80 mm) 804828
Butt (cast iron, MK 2, quadratic - 60x60 mm) 804847
Butt (cast iron, MK2, quadratic - 100x100 mm) 804849

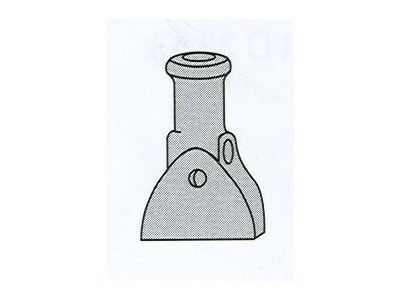

Butt (rubber MK 2, quadratic - 80x80 mm) 804856
Butt (cast iron, MK 2, square - 60x20 mm) 804862
Butt (rubber MK 2, square 75x45 mm) 804871

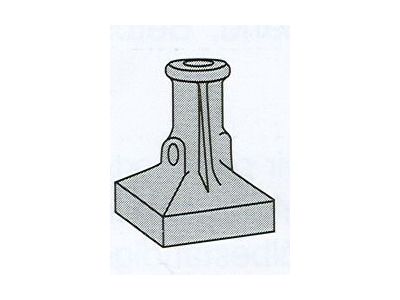

Butt (cast iron, MK 2, square - 75x50 mm) 804865
Butt (rubber MK 2, wedge - 50x25 mm) 804884
Butt (rubber MK 2, wedge 70x50 mm) 804885
Butt (rubber MK 2, wedge 75x25 mm) 804886
Butt (rubber MK 2, wedge 70x50 mm) 804887
Chisel to butt-releasing 804890
