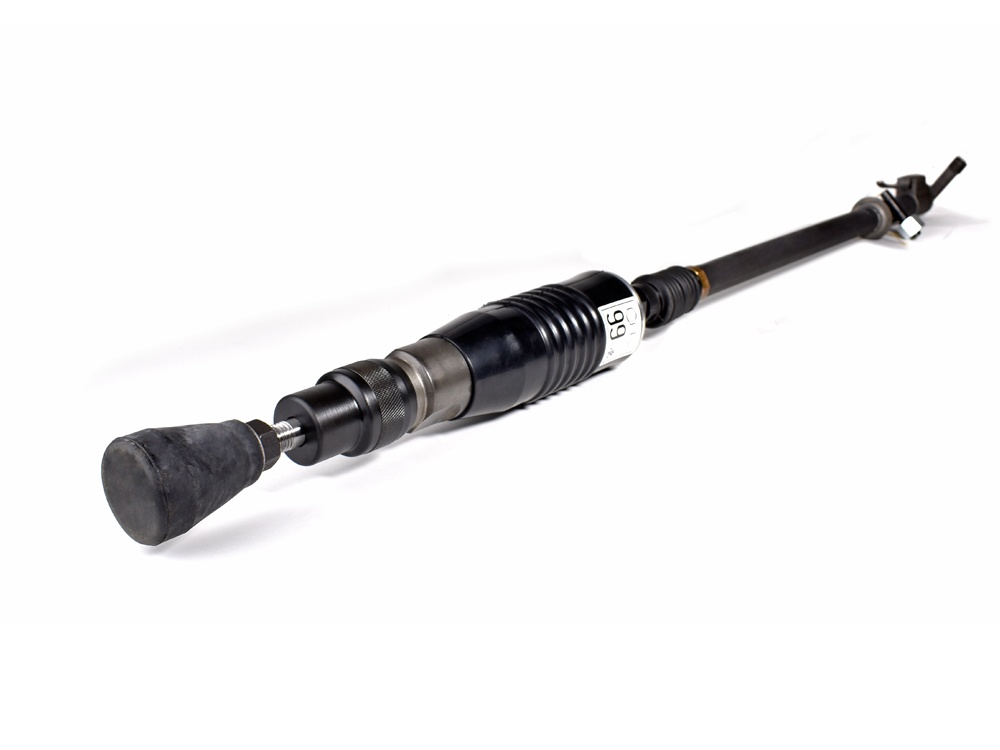

HR105-R60V
Our impact hammer with MORSE taper is used in many applications, such as the scaling of forgings when used with tampered- or rubber butts, the cleaning of Open-Hearth- or Electric Ovens, for the compacting of concrete and dirt during construction, as well as for fabrication in the cement- and stone production.
Your advantages: Highlys durable, simple operation, robust.
Objednací číslo
6060022A
| Weight | 10,5 kg / 23.15 lbs |
|---|---|
| Impact per minute | 780 min-1 |
| Air consumption (no load) | 0,6 m3/min / 21.19 cfm |
| Assortment | Additional Assortment |
| I.D. of air inlet hose | 13 mm / .51 in |
| Piston-Ø | 36 mm / 1.42 in |
| Piston stroke | 223 mm / 8.78 in |
| Dimensions of rammer | ø 60 mm / ø 2.36 in |
| Morse taper | 2 |
| Air connection | G 1/2'' male |
| Impact per minute - Hz | 13 Hz |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Hose Nozzle |
|
6072463 |
|---|---|---|
| Screw cap |
|
6072378 |
Optional Accessories
| Outside tube 700 mm |
|
6072548 |
|---|---|---|
| Outside tube 360 mm |
|
6072550 |
