Metal Shears S20-110Y
Powerful and precise cutting for sheet metal applications
The DEPRAG S20-110Y pneumatic shears are the ideal solution for fast, precise, and safe cutting of metal sheets. Suitable for use in automotive bodywork, tank manufacturing, shipbuilding, as well as in maintenance and repair workshops.
Key benefits:
-
Designed for cutting both straight and curved sheet profiles
-
Suitable for steel and non-ferrous metals
-
Standard blade cuts materials up to 400 MPa tensile strength
-
For harder materials, use the optional “Cr” blade
Maximum visibility and safety:
The ergonomic design offers a clear view of the cutting line and work surface, ensuring greater operator safety and precise, repeatable cutting – even for demanding shapes.
Objednací číslo
3388471B
| Max. power output | 320 W / .43 hp |
|---|---|
| Smallest cutting radius | 20 mm / .79 in |
| Air connection | thread 1/4" male |
| Weight | 1,9 kg / 4.19 lbs |
| I.D. of water hose | 6 mm / .24 in |
| Air consumption (no load) | 0,8 m3/min / 28.25 cfm |
| Air consumption (loaded) | 0,4 m3/min / 14.12 cfm |
| Max. aluminium thickness up to 400 N/mm2 | 2,5 mm / .10 in |
| Max. sheet metal thickness up to 800 N/mm2 | 1,4 mm / .06 in |
| Max. sheet metal thickness up to 600 N/mm2 | 1,6 mm / .06 in |
| Max. sheet metal thickness up to 400 N/mm2 | 2 mm / 0.08 in |
| Impacts (at full load) | 1100 min-1 |
| Cutting speed up to | 7 m/min / 22.96 ft/min |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Hose Nozzle |
|
410532 |
|---|---|---|
| Screw cap |
|
410533 |
| Allen key 3 mm |
|
800446 |
| Allen key 4 mm |
|
800447 |

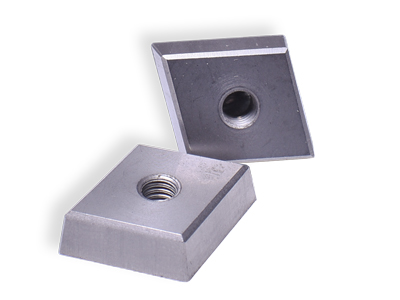

| Blade (set 2 pcs) |
|
6081798 |
Optional Accessories
| Blade "Cr" (set 2 pcs) |
|
6081872 |
|---|
