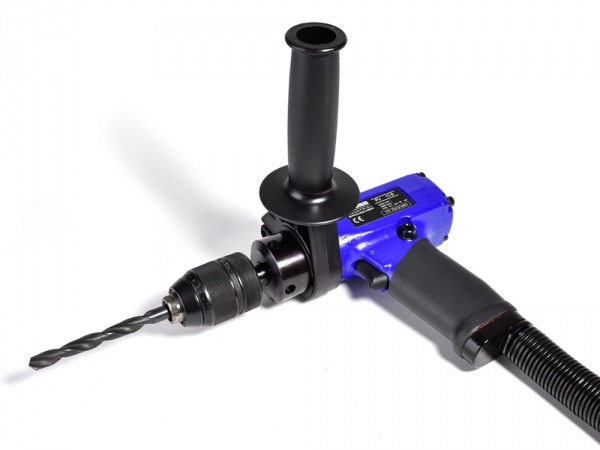

PV13B
Our robust air drill with pistolgrip with offset handle design for pressure into the drill-axis mainly used for horizontal applications.
For the optimum drilling of different materials - for the operation in the aviation- and automotive industry, as well as the machine building industry.
Ergonomic design of this drill make your job easier, safer and more efficient.
This drill is with combined air- and exhaust hose - best suited in areas where there is a dusty environment and where a clean environment is desired.
Objednací číslo
826291A
| Max. power output First gear / Second gear | 450 / 500 W / .60/.67 hp |
|---|---|
| Speed (no load) First gear / Second gear | 1450 / 1950 min-1 |
| Weight | 2,45 kg / 5.40 lbs |
| Drive | vane motor |
| Assortment | Standard assortment |
| Start | trigger |
| Rotation | right |
| Air consumption (loaded) | 0,7 m3/min / 24.72 cfm |
| Air consumption (no load) first gear / second gear | 0,45 / 0,9 m3/min / 15.89 / 31.78 cfm |
| I.D. of air inlet hose | 10 mm / .39 in |
| Length of supply/exhaust hose | 2/1,6 m / 6.6 / 5.2 ft |
| Chuck range | 2-13 Quick mm |
| Drilling into steel to | 13 mm / .51 in |
| Drilling into alu to | 13 mm / .51 in |
| Air connection | Nipple |
| Spindle thread | 1/2''20UNF |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Allen key 5 mm |
|
800448 |
|---|---|---|
| Spanner 13 mm |
|
800404 |
| Drill chuck |
|
829257 |
| Switch off |
|
6072204 |
| Nipple Lw 10/D23/B |
|
6013802 |
Optional Accessories
| Drill chuck D13 1/2''-20UNF |
|
830760 |
|---|
