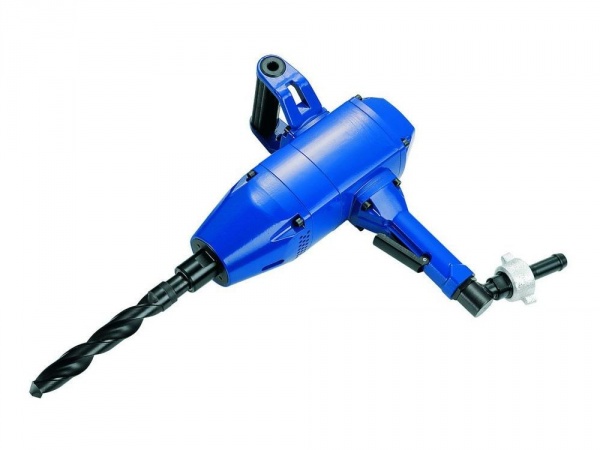

PV32A-04X
A pneumatic drill designed for manual drilling of a wide range of materials, as well as for reaming holes in metals and their alloys, for example in the aerospace, automotive, footwear and mechanical engineering industries.
Intuitive operation. High-precision drilling – in minimal time. Low vibration and noise levels ensure comfortable working conditions.
For tool clamping, the drill spindle is equipped with a MORSE 3 taper. The maximum drill diameter is 32 mm.
Product number
827119A
| Max. power output | 1850 W / 2.48 hp |
|---|---|
| Speed (no load) | 380 min-1 |
| Weight | 9,5 kg / 2.94 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Rotation | right |
| Air consumption (no load) | 1,1 m3/min / 38.84 cfm |
| Air consumption (loaded) | 2,1 m3/min / 74.15 cfm |
| I.D. of air inlet hose | 19 mm / .75 in |
| Morse taper | 3 |
| Drilling into steel to | 32 mm / 1.26 in |
| Drilling into alu to | 32 mm / 1.26 in |
| Air connection | Rd 32 |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Press wedge 3 |
|
830718 |
|---|---|---|
| Hose Nozzle |
|
6013768 |
| Screw cap |
|
6014168 |
