SMP026-1/2"ZEX

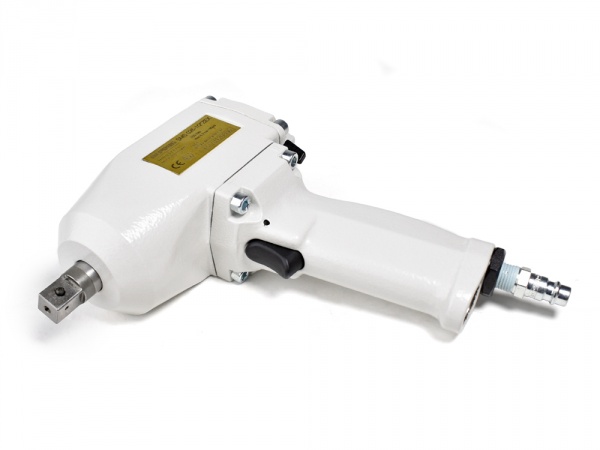

Impact wrench with pistolgrip - for the quick and low-fatique tightening and loosening of screws from M10 to M16; our impact tool is specially well-suited for the tightening of screws in the assembly and maintenance sector, which may also be located in explosive hazardous environments  - ATEX-compliant - IM2cXII2GDcIIBT6(80°C)X .

Your Advantages: ATEX-compliant, this impact wrench can be used in a hazardous environment (explosion-proof area), enhanced safety features, simple operation, highly durable

Objednací číslo
6061104A
For screws M10 - M16
Max. torque capability 260 Nm
Weight 2,3 kg / 5.07 lbs
Speed (no load) 10000 min-1
Assortment Additional Assortment
Start trigger
Design Pistolgrip Design
Rotation right
Air consumption (no load) 1,25 m3/min / 44.14 cfm
Air consumption (loaded) 0,67 m3/min / 23.66 cfm
I.D. of air inlet hose 10 mm / .39 in
Air connection thread 1/4" female
Impact per minute 1080 min-1
Impact per minute - Hz 18 Hz
12,7
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Hanger 830740
Plug 25SF AK 13 SXN 6072224
Optional Accessories
Integrated socket LW 16 6075055
Integrated socket LW 17 6072129
Integrated socket LW 18 6075057
Integrated socket LW 19 6072133
Integrated socket LW 21 6075059
Integrated socket LW 22 6075060
Integrated socket LW 24 6072137
