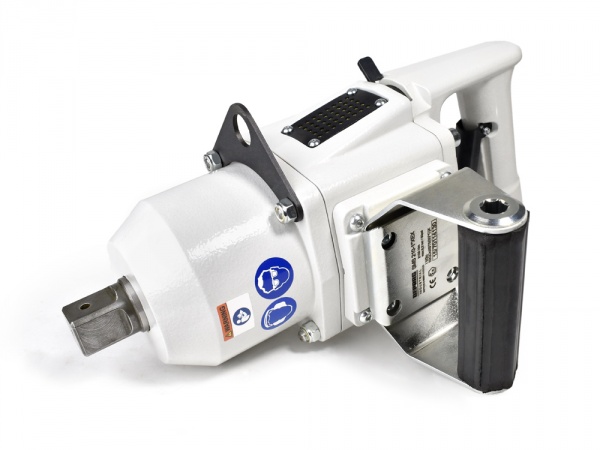

SMS210-1"XEX
Impact wrench - inline design with fistgrip - for the quick and low-fatique tightening and loosening of screws from M20 to M36; our impact tool is specially well-suited for the tightening of screws in the assembly and maintenance sector, which may also be located in explosive hazardous environments - ATEX-compliant - IM2cXII2GDcIIBT6(80°C)X .
Your Advantages: ATEX-compliant, this impact wrench can be used in a hazardous environment (explosion-proof area), enhanced safety features, simple operation, highly durable
Objednací číslo
6061106A
| Max. torque capability | 2100 Nm |
|---|---|
| For screws | M20 - M36 |
| Weight | 10,5 kg / 23.15 lbs |
| Speed (no load) | 3600 min-1 |
| Assortment | Additional Assortment |
| Start | safety lever |
| Design | Inline design |
| Rotation | right |
| Air consumption (no load) | 2,8 m3/min / 98.87 cfm |
| Air consumption (loaded) | 2 m3/min / 70.62 cfm |
| I.D. of air inlet hose | 16 mm / .63 in |
| Air connection | Rd 32 |
| Impact per minute | 660 min-1 |
| Impact per minute - Hz | 11 Hz |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment

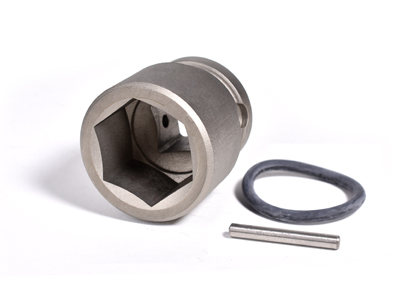

| Integrated socket 4HR1'' 6HR50 |
|
6011666 |
|---|---|---|

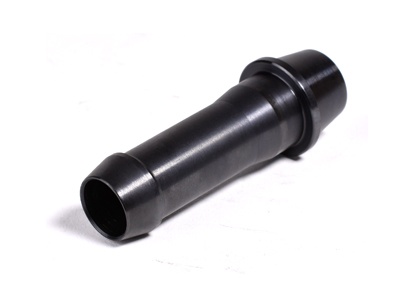

| Hose Nozzle |
|
6013768 |

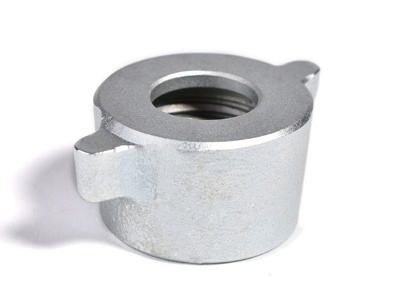

| Screw cap |
|
6014168 |
