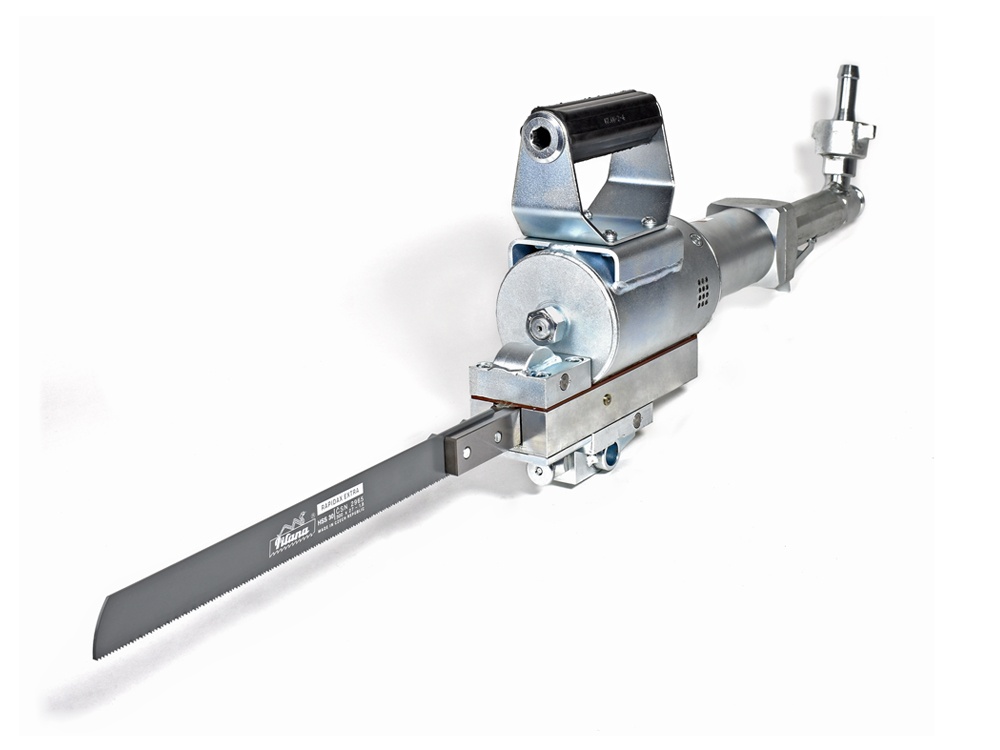

SS150-280BX

Jig saw - for cutting in potentially explosive environments

  • All-metal jit saw primarily for use in potentially explosion hazardous environments (mining)
  • For the cutting of supports, pipes, cables
  • The saw can be equipped with an integrated clamping device which allows deeper cutting - up to 300 mm (11.81 in)
  • Integrated speed regulator assures perfect and constant cutting conditions

Motor output at air pressure 4,5 bar: 0,9 kW (1,2 HP).

Motor output at air pressure 6,3 bar: 1,5 kW (2,0 HP).

Objednací číslo
6060835A
Recommended number of cycles for cutting of steel of class 11 with cutting speed 27 m.min-1 200 min-1
Max. power output 1500 W / 2.01 hp
Max. length of saw blade 400 mm / 15.75 in
Weight 10,8 kg / 23.81 lbs
Stroke speed (no load) 280 min-1
Assortment Additional Assortment
Start safety lever
Air consumption (no load) 0,65 m3/min / 22.95 cfm
Air consumption (loaded) 0,8 m3/min / 28.20 cfm
I.D. of air inlet hose 19 mm / .75 in
Air connection Rd 32
Stroke of saw blade 68 mm / 2.68 in
Max. dimensions of cutting material for middle length of saw blade 350 mm 300x27x1,5 mm / 11.81x1.06x.06 in
Operating pressure 6,3 bar / 90 psi
Standard Equipment
Spanner 13 mm 800404

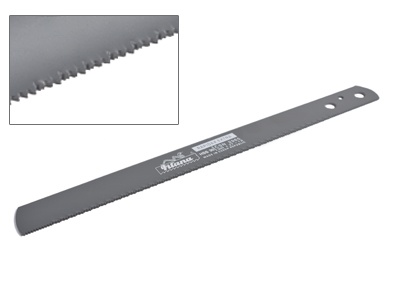

Saw blade 300x27x1,6 mm 830749

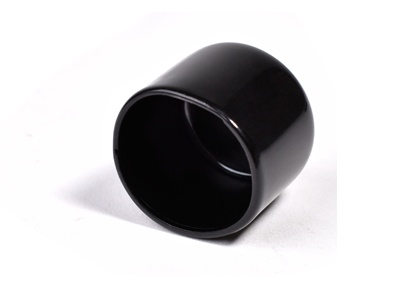

Cover 6074388
Allen key 5 mm 800448

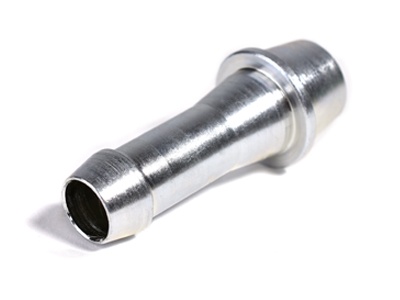

Hose Nozzle 6013825
Screw cap 6014168
Optional Accessories

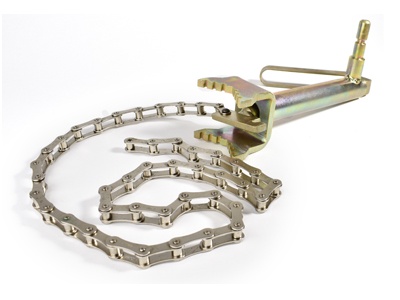

Chucking device 6076249
